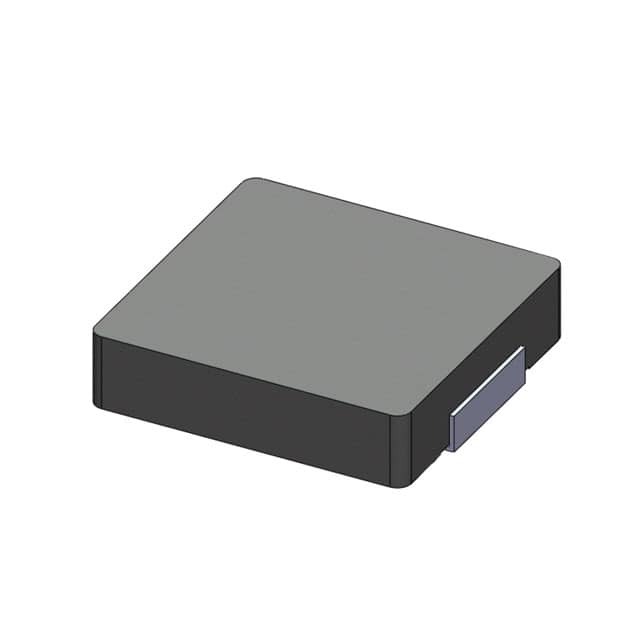

0518CDMCCDS-3R3MC

SKU: 6265

Manufacturer: Sumida

Inductor Power Shielded/Molded Wirewound 3.3uH 20% 100KHz Metal 4.2A 0.058Ohm DCR 2020 T/R

1660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded/Molded
Core Body Material	Metal
Inductance (H)	3.3u
Inductance Decrease Percentage @ Isat (%)	70
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	4.2(Typ)
Maximum Saturation Current (A)	5.4
Maximum DC Resistance (Ohm)	0.058
Number of Terminals	2
Case Size	2020
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	5.7
Terminal Form	Surface Mount
Depth (mm)	5.4
