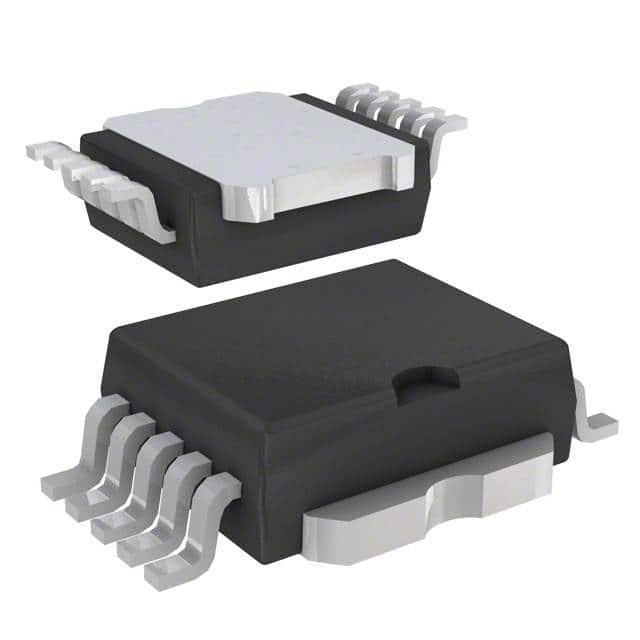

VND10BSP

SKU: 36715

Manufacturer: STMicroelectronics

Power Switch Hi Side 2-OUT 14A 0.1Ohm 12-Pin(10+2Tab) PowerSO Tube

1900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	High Side
Number of Outputs	2
Operating Supply Voltage Range (V)	6 to 26
Minimum Output Current (A)	14(Max)
Supply Current (mA)	0.035
Switch On Resistance (Ohm)	0.1(Max)
Maximum Power Dissipation (mW)	75000
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	PowerSO
Pin Count	12
Standard Package Method	PowerSO
Terminal Form	Surface Mount
Package Height	3.65(Max)
Package Length	7.6(Max)
Package Width	9.5(Max)
PCB changed	10
Tab	2Tab
