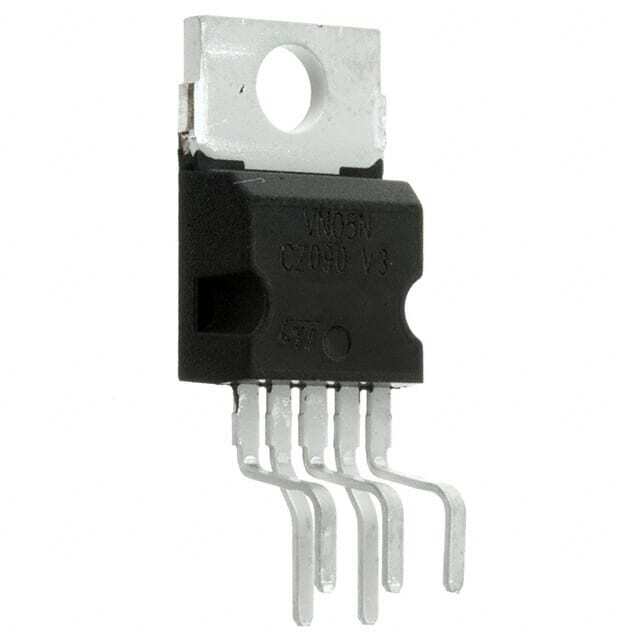

VN05N

SKU: 22485

Manufacturer: STMicroelectronics

Power Switch Hi Side 1-OUT 13A 0.18Ohm Automotive 5-Pin(5+Tab) PENTAWATT Tube

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	Unknown
PPAP	Unknown
Type	High Side
Number of Outputs	1
Operating Supply Voltage Range (V)	7 to 26
Minimum Output Current (A)	13(Typ)
Supply Current (mA)	15(Max)
Switch On Resistance (Ohm)	0.18(Max)
Maximum Power Dissipation (mW)	56000
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	PENTAWATT
Pin Count	5
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.2
Package Length	10.4(Max)
Package Width	4.8(Max)
PCB changed	5
Tab	Tab
