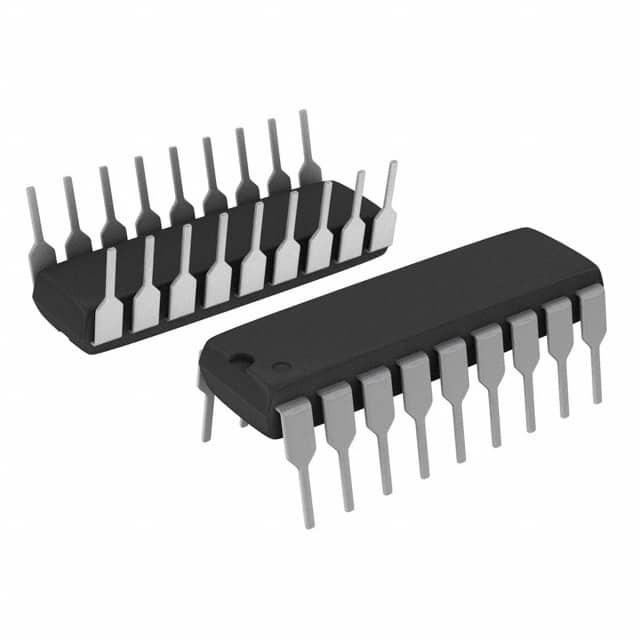

ULN2803A

SKU: 64928

Manufacturer: STMicroelectronics

Trans Darlington NPN 50V 0.5A 2250mW 18-Pin PDIP Tube

3440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	NPN
Configuration	Octal Common Emitter
Number of Elements per pcs	8
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	30
Maximum Continuous DC Collector Current (A)	0.5
Maximum Base Current (A)	0.025
Operating Junction Temperature (°C)	-20 to 150
Maximum Collector-Emitter Saturation Voltage (V)	1.1@250uA@100mA
Maximum Power Dissipation (mW)	2250
Operating Temperature-Min	-20
Operating Temperature-Max	85
Packing Method	Tube
Original Package	PDIP
Pin Count	18
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.93(Max) - 0.25(Min)
Package Length	23.24(Max)
Package Width	7.1(Max)
PCB changed	18
