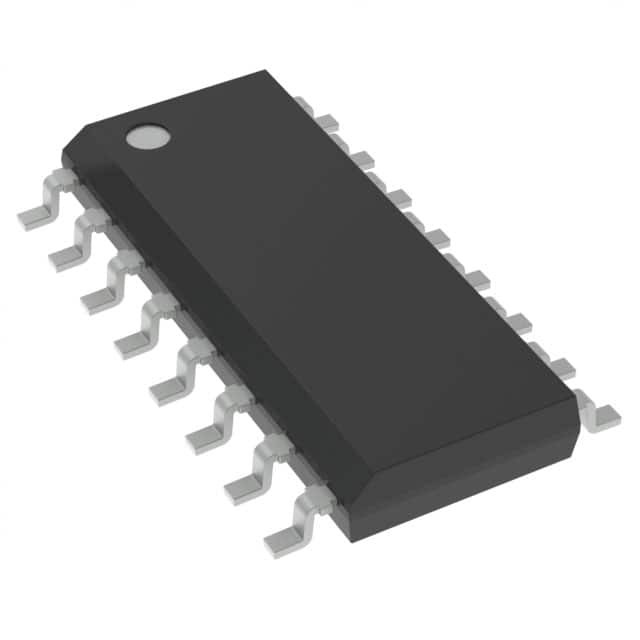

TSM102ID

SKU: 71879

Manufacturer: STMicroelectronics

Comparator Dual 36V 16-Pin SO Tube

68880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Manufacturer Type	General Purpose Comparator
Number of Channels per Chip	2
Typical Response Time (us)	1.3
Typical Response Time Range (us)	0.5 to 5
Operating Supply Voltage-Max (V)	36
Maximum Input Offset Voltage (mV)	5@5V
Maximum Single Supply Voltage (V)	36
Typical Voltage Gain (dB)	106.02
Typical Voltage Gain Range (dB)	90 to 110
Maximum Input Bias Current (uA)	0.25@5V
Maximum Supply Current (mA)	1.5@5V
Typical Output Current (mA)	16@5V
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Standard Package Method	SOP
Original Package	SO
Pin Count	16
Terminal Form	Surface Mount
Package Height	1.65(Max)
Package Length	10(Max)
Package Width	4(Max)
PCB changed	16
