TSH114ID

SKU: 73604

Manufacturer: STMicroelectronics

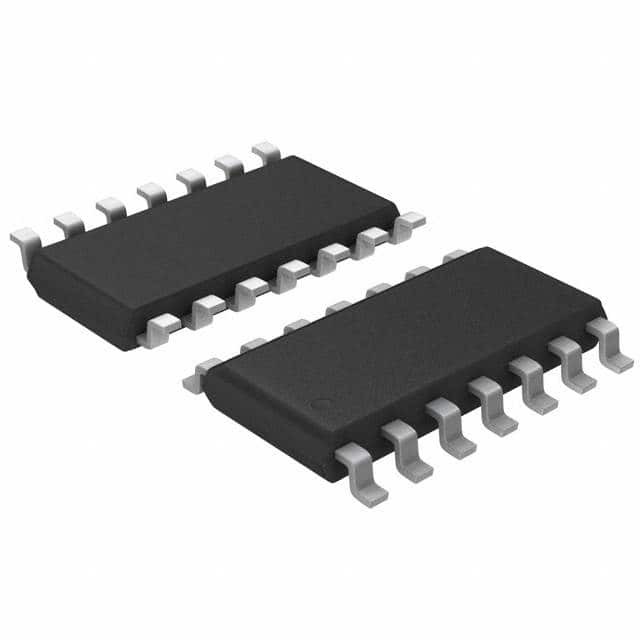

Op Amp Quad Wideband Amplifier ±6V/12V 14-Pin SOIC Tube

3620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Wideband Amplifier
Manufacturer Type	Wideband Amplifier
Number of Channels per Chip	4
Maximum Input Offset Voltage (mV)	3@±6V
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±2.5
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±6
Maximum Input Bias Current (uA)	14@±6V
Maximum Supply Current (mA)	20@±6V
Typical Output Current (mA)	47@±6V@-40C to 85C
Power Supply Type	Dual
Typical Slew Rate (V/us)	450@±6V
Typical Input Noise Voltage Density (nV/rtHz)	3@±6V
Typical Noninverting Input Current Noise Density (pA/rtHz)	8.6@±6V
Minimum PSRR (dB)	49(Typ)
Minimum CMRR (dB)	58
Minimum CMRR Range (dB)	50 to 60
Typical Settling Time (ns)	40
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	14
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.65(Max)
Package Length	8.75(Max)
Package Width	4(Max)
