TS820-600FP

SKU: 144422

Manufacturer: STMicroelectronics

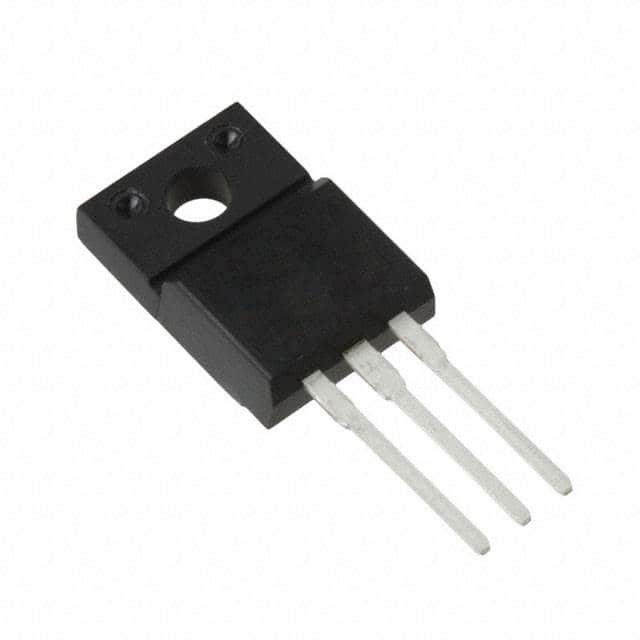

Thyristor SCR 600V 73A 3-Pin(3+Tab) TO-220FPAB Tube

1840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	5(Min)
Maximum Rate of Rise of On-State Current (A/us)	50
Maximum Gate Trigger Voltage (V)	0.8
Maximum Gate Trigger Current (mA)	0.2
Surge Current Rating (A)	73
Maximum Holding Current (mA)	5
Repetitive Peak Reverse Voltage (V)	600
Maximum Gate Peak Inverse Voltage (V)	8(Min)
Peak On-State Voltage (V)	1.6@16A
Repetitive Peak Forward Blocking Voltage (V)	600
Rated Average On-State Current (A)	5
Repetitive Peak Off-State Current (mA)	0.005
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Pin Count	3
Terminal Form	Through Hole
Package Height	16.4(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	3
