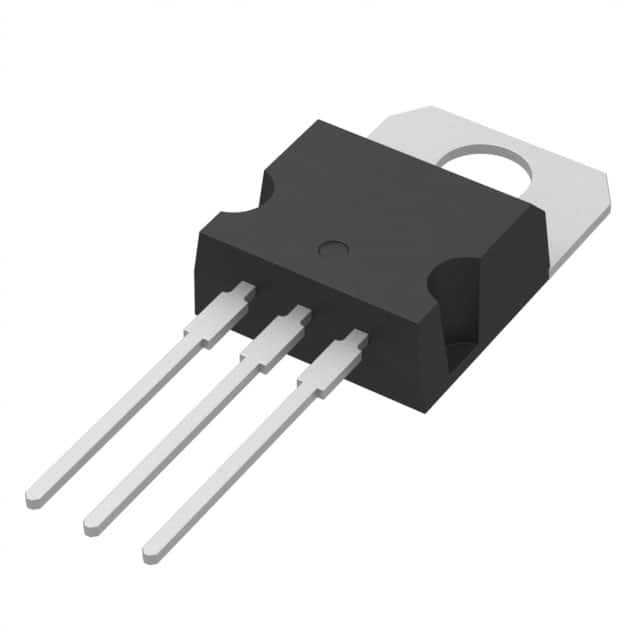

TN4015H-6T

SKU: 57723

Manufacturer: STMicroelectronics

SCR Diode 600V 40A(RMS) 394A 3-Pin(3+Tab) TO-220AB Tube

1540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	500(Min)
Maximum Rate of Rise of On-State Current (A/us)	100
Maximum Gate Trigger Voltage (V)	1.3
Maximum Gate Trigger Current (mA)	15
Surge Current Rating (A)	394
Maximum Holding Current (mA)	60
Repetitive Peak Reverse Voltage (V)	600
Maximum Gate Peak Inverse Voltage (V)	5
Peak On-State Voltage (V)	1.6@80A
Repetitive Peak Forward Blocking Voltage (V)	600
Rated Average On-State Current (A)	25
RMS On-State Current (A)	40
Repetitive Peak Off-State Current (mA)	0.01
Maximum Latching Current (mA)	80
Average Gate Power Dissipation (W)	1
Circuit Fusing Consideration (A²S)	648
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	TO-220AB
Pin Count	3
Terminal Form	Through Hole
Package Height	9.15(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	3
Tab	Tab
