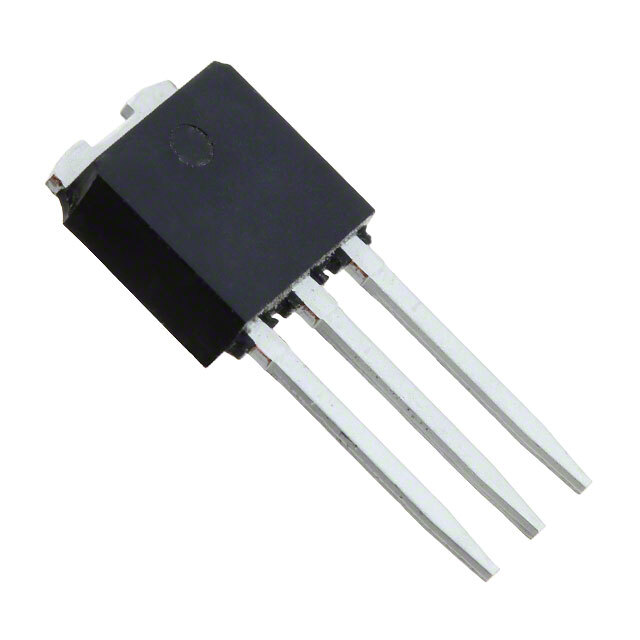

TN1215-600H

SKU: 142562

Manufacturer: STMicroelectronics

SCR Diode 600V 12A(RMS) 145A 3-Pin(3+Tab) IPAK Tube

16840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	200(Min)
Maximum Rate of Rise of On-State Current (A/us)	50
Maximum Gate Trigger Voltage (V)	1.3
Maximum Gate Trigger Current (mA)	15
Surge Current Rating (A)	145
Maximum Holding Current (mA)	40
Repetitive Peak Reverse Voltage (V)	600
Maximum Gate Peak Inverse Voltage (V)	5
Peak On-State Voltage (V)	1.6@24A
Repetitive Peak Forward Blocking Voltage (V)	600
Rated Average On-State Current (A)	8
RMS On-State Current (A)	12
Repetitive Peak Off-State Current (mA)	0.005
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	IPAK
Pin Count	3
Standard Package Method	TO-251
Terminal Form	Through Hole
Package Height	6.2(Max)
Package Length	6.6(Max)
Package Width	2.4(Max)
PCB changed	3
Tab	Tab
