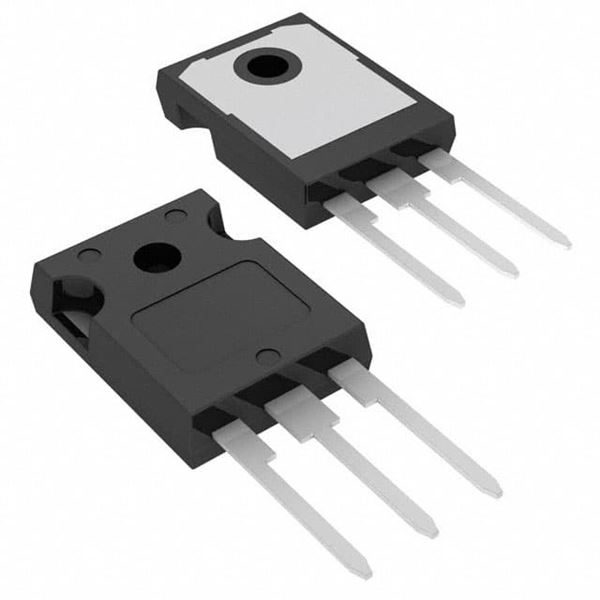

TIP142

SKU: 78565

Manufacturer: STMicroelectronics

Trans Darlington NPN 100V 10A 125000mW 3-Pin(3+Tab) TO-247 Tube

19990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Configuration	Single
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	100
Collector Base Voltage-Max (V)	100
Maximum Emitter Base Voltage (V)	5
Maximum Continuous DC Collector Current (A)	10
Maximum Collector Cut-Off Current (uA)	1000
Maximum Collector-Emitter Saturation Voltage (V)	2@10mA@5A
Minimum DC Current Gain	1000@5A@4V
Maximum Power Dissipation (mW)	125000
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.15(Max)
Package Length	15.75(Max)
Package Width	5.15(Max)
PCB changed	3
Tab	Tab
