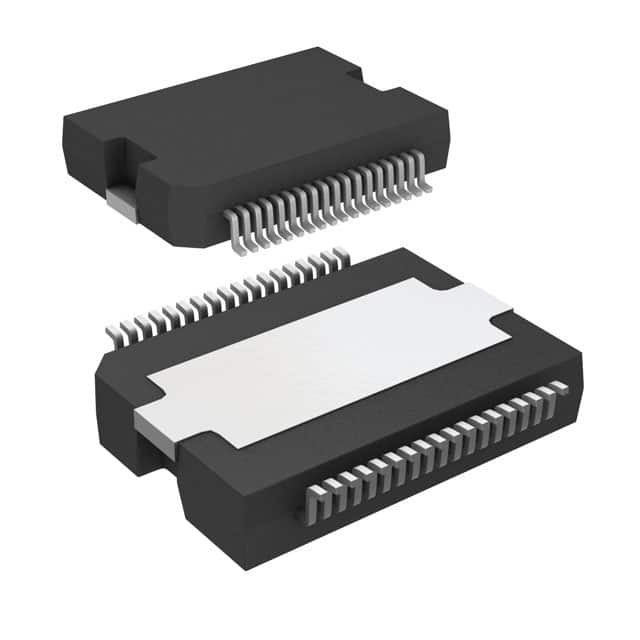

TDA7803A-ZST

SKU: 94645

Manufacturer: STMicroelectronics

Audio Amp Speaker 4-CH Stereo 47W Class-AB Automotive 36-Pin PowerSO Slug Up T/R

740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Function	Speaker
Amplifier Type	Class-AB
THDN	0.02%@4Ohm@6W
Output Signal Type	Differential
Output Type	4-Channel Stereo
Maximum Input Offset Voltage (mV)	25@14.4V
Minimum Dual Supply Voltage (V)	6
Typical Dual Supply Voltage (V)	9
Maximum Dual Supply Voltage (V)	16
Maximum Quiescent Current (mA)	210@14.4V
Power Supply Type	Dual
Maximum Output Power x Channels @ Load (W)	72x4@2Ohm
Typical Output Power x Channels @ Load (W)	47x4@2Ohm
Maximum Power Dissipation (mW)	85000
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	PowerSO Slug Up
Pin Count	36
Terminal Form	Surface Mount
Package Height	3.18(Max)
Package Length	16(Max)
Package Width	11.1(Max)
