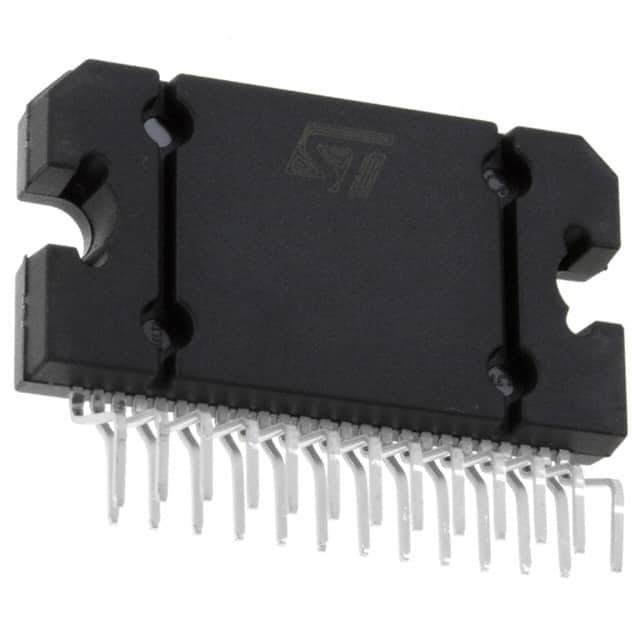

TDA7560

SKU: 142392

Manufacturer: STMicroelectronics

Audio Amp Speaker 4-CH Stereo 55W Class-AB 25-Pin(25+Tab) FLEXIWATT(Vertical) Tube

2250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-AB
Rail to Rail	Rail to Rail Output
THDN	0.015%@2Ohm@15W
Output Signal Type	Differential
Output Type	4-Channel Stereo
Maximum Output Current (mA)	10000
Maximum Single Supply Voltage (V)	28
Maximum Quiescent Current (mA)	320@13.2V
Power Supply Type	Single
Typical Output Power x Channels @ Load (W)	55x4@2Ohm
Maximum Power Dissipation (mW)	80000
Operating Temperature-Max	150
Packing Method	Tube
Original Package	FLEXIWATT(Vertical)
Pin Count	25
Standard Package Method	FLEXIWATT(Vertical)
Terminal Form	Through Hole
Package Height	15.7
Package Length	29.23
Package Width	4.5
PCB changed	25
