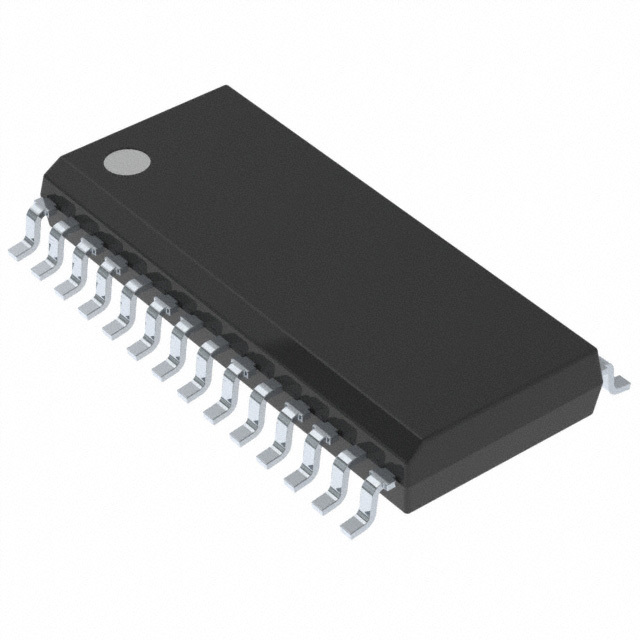

TDA7440D

SKU: 113958

Manufacturer: STMicroelectronics

Audio Processor Bass/Treble 4-IN 1-OUT 28-Pin SO

620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Tone Control Band	Bass
Number of Audio Inputs	4
Number of Audio Outputs	1
Volume Step (dB)	1
Volume Control Range (dB)	-47 to 0
Mute Attenuation (dB)	100
Total Harmonic Distortion	0.1%
Operating Supply Voltage-Min (V)	6
Typical Operating Supply Voltage (V)	9
Operating Supply Voltage-Max (V)	10.2
Maximum Supply Current (mA)	10
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	28
Standard Package Method	SOP
Original Package	SO
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	18.1(Max)
Package Width	7.6(Max)
PCB changed	28
