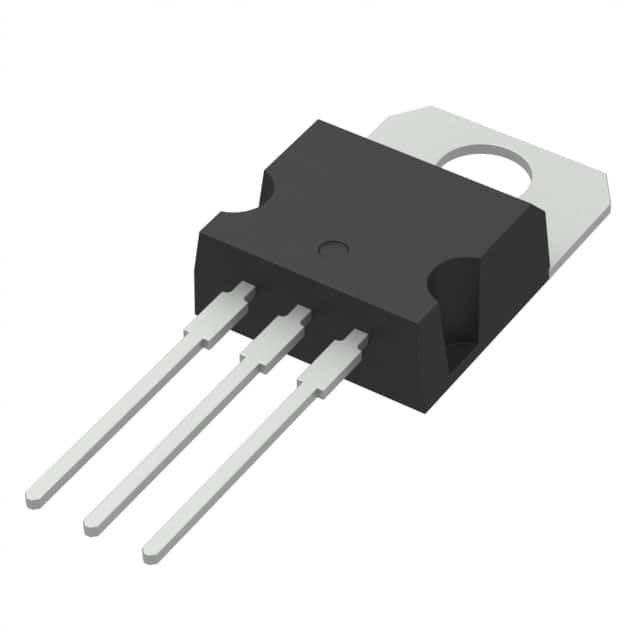

    T835T-8T

    SKU: 151408
    Manufacturer: STMicroelectronics
    TRIAC Diode 800V 8A(RMS) 63A 3-Pin(3+Tab) TO-220AB Tube
    2100 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.30.00.80
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Maximum Rate of Rise of Off-State Voltage (V/us) 2000(Min)
    Maximum Rate of Rise of On-State Current (A/us) 100
    Maximum Gate Trigger Voltage (V) 1.3
    Maximum Gate Trigger Current (mA) 35
    Surge Current Rating (A) 63
    Maximum Holding Current (mA) 40
    Repetitive Peak Reverse Voltage (V) 800
    Peak On-State Voltage (V) 1.55@11.3A
    Repetitive Peak Forward Blocking Voltage (V) 800
    RMS On-State Current (A) 8
    Repetitive Peak Off-State Current (mA) 0.005
    AC Switch No
    Operating Temperature-Min -40
    Operating Temperature-Max 150
    Packing Method Tube
    Original Package TO-220AB
    Pin Count 3
    Standard Package Method TO-220
    Terminal Form Through Hole
    Package Height 9.15(Max)
    Package Length 10.4(Max)
    Package Width 4.6(Max)
    PCB changed 3
    Tab Tab
