T1610T-8T

SKU: 135189

Manufacturer: STMicroelectronics

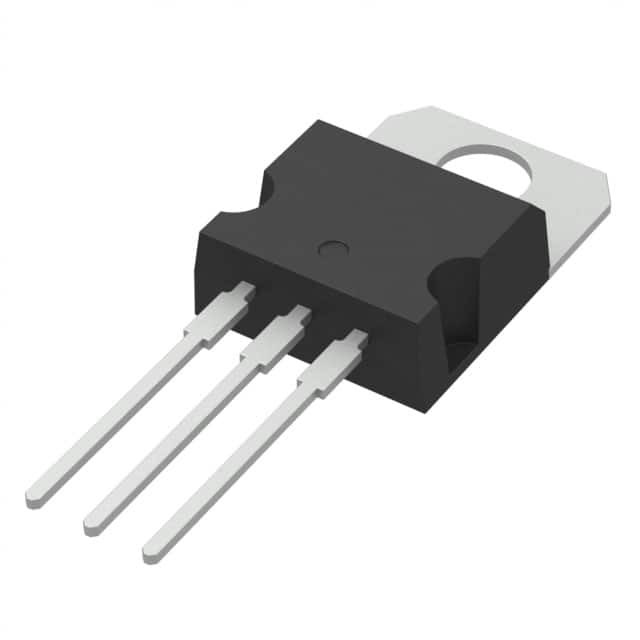

TRIAC Diode 800V 16A(RMS) 126A 3-Pin(3+Tab) TO-220AB Tube

1100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	250(Min)
Maximum Rate of Rise of On-State Current (A/us)	100
Maximum Gate Trigger Voltage (V)	1.3
Maximum Gate Trigger Current (mA)	10
Surge Current Rating (A)	126
Maximum Holding Current (mA)	15
Repetitive Peak Reverse Voltage (V)	800
Peak On-State Voltage (V)	1.55@22.6A
Repetitive Peak Forward Blocking Voltage (V)	800
RMS On-State Current (A)	16
Repetitive Peak Off-State Current (mA)	0.0075
AC Switch	No
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.15(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	3
Tab	Tab
