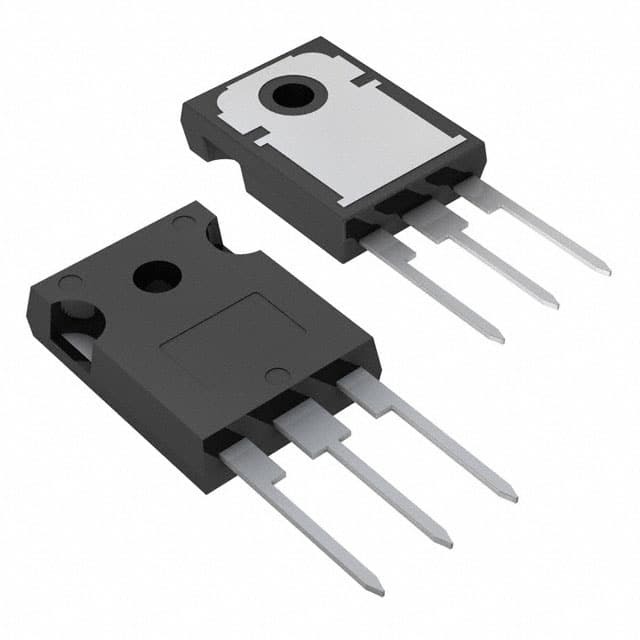

STW75NF30

SKU: 128025

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 300V 60A Automotive 3-Pin(3+Tab) TO-247 Tube

2430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single
Process Technology	STripFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	300
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	60
Maximum Drain Source Resistance (mOhm)	45@10V
Typical Gate Charge @ Vgs (nC)	164@10V
Typical Gate Charge @ 10V (nC)	164
Typical Input Capacitance @ Vds (pF)	5930@25V
Maximum Power Dissipation (mW)	320000
Typical Fall Time (ns)	101
Typical Rise Time (ns)	87
Typical Turn-Off Delay Time (ns)	141
Typical Turn-On Delay Time (ns)	115
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-247
Original Package	TO-247
Terminal Form	Through Hole
Package Height	20.15(Max)
Package Length	15.75(Max)
Package Width	5.15(Max)
PCB changed	3
Tab	Tab
