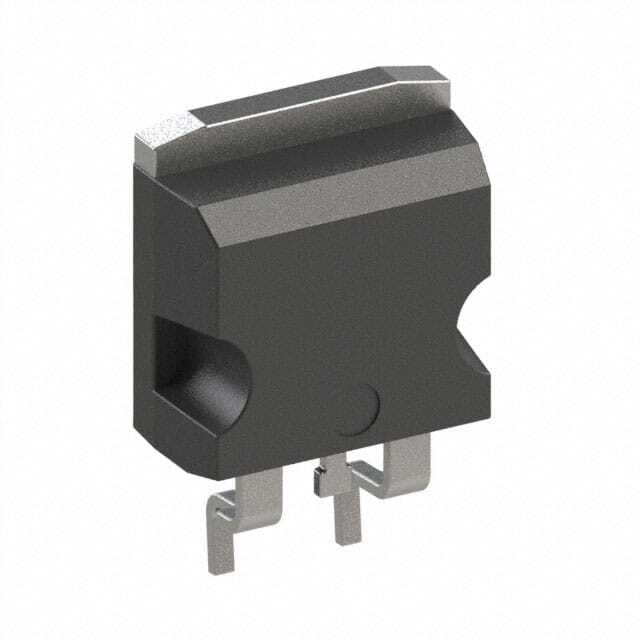

STTH30RQ06G2Y-TR

SKU: 85542

Manufacturer: STMicroelectronics

Rectifier Diode Switching 600V 30A 55ns Automotive 3-Pin(2+Tab) H2PAK T/R

3230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	Yes
PPAP	Yes
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Maximum Continuous Forward Current (A)	30
Peak Non-Repetitive Surge Current (A)	180
Peak Forward Voltage (V)	2.95
Peak Reverse Current (uA)	40
Peak Reverse Recovery Time (ns)	55
Operating Temperature-Min	-40
Operating Temperature-Max	175
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	H2PAK
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.6(Max)
Package Length	10.4(Max)
Package Width	9.35(Max)
PCB changed	2
