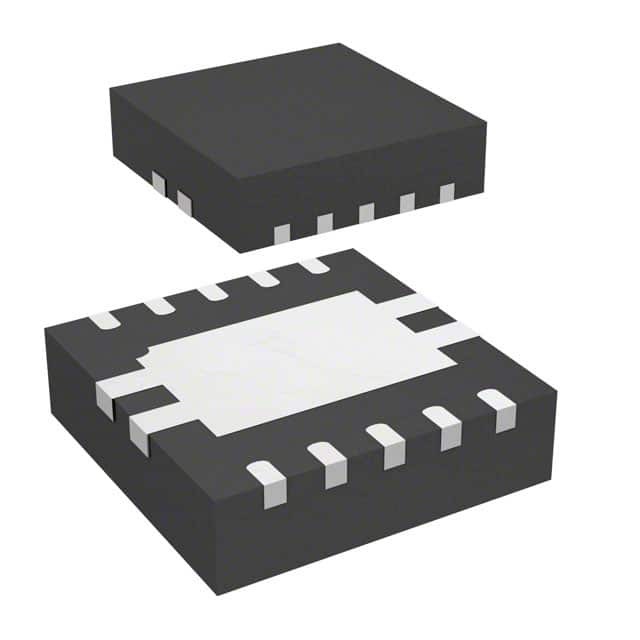

STR485LVQT

SKU: 43215

Manufacturer: STMicroelectronics

Single Transmitter/Receiver RS-485 10-Pin DFN EP T/R

3380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Function	Line Transceiver
Data Rate	20Mbps
Transmitter Communication Type	RS-485
Receiver Communication Type	RS-485
Interface Standards	RS-485
Data Transmission Topology	Multipoint
Number of Transceivers	1
Number of Transmitters	1
Number of Receivers	1
Transmitter Signal Type	Differential
Receiver Signal Type	Differential
Number of Drivers per Line	32
Number of Receivers per Line	32
Driving Mode	No
Number of Transmitter Enables	1
Number of Receiver Enables	1
Operating Temperature-Min	-40
Operating Temperature-Max	105
Power Supply Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Isolation	No
Packing Method	Tape and Reel
Pin Count	10
Original Package	DFN EP
Terminal Form	Surface Mount
Package Height	0.88
Package Length	3
Package Width	3
