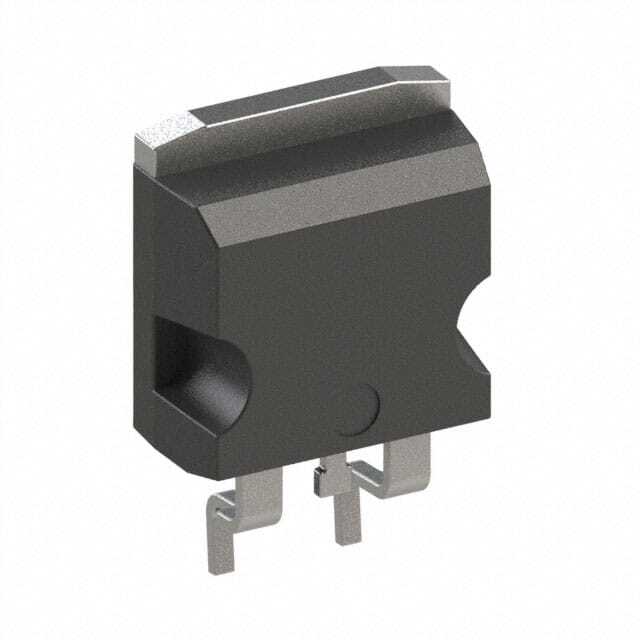

STPSC8H065G2Y-TR

SKU: 142262

Manufacturer: STMicroelectronics

Rectifier Diode Schottky SiC 650V 8A Automotive 3-Pin(2+Tab) D2PAK T/R

2300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	Yes
PPAP	Yes
Type	Schottky Diode
Body Material	SiC
Configuration	Single
Peak Reverse Repetitive Voltage (V)	650
Maximum Continuous Forward Current (A)	8
Peak Non-Repetitive Surge Current (A)	420
Peak Forward Voltage (V)	1.65
Peak Reverse Current (uA)	80
Operating Temperature-Min	-40
Operating Temperature-Max	175
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	D2PAK
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.7(Max)
Package Length	10.4(Max)
Package Width	9.17(Max)
PCB changed	2
