STPSC10065D

SKU: 14871

Manufacturer: STMicroelectronics

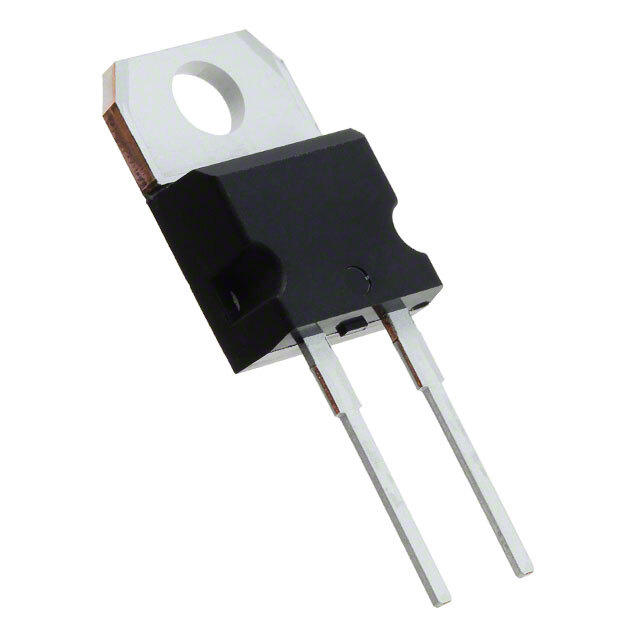

Rectifier Diode Schottky SiC 650V 10A 2-Pin(2+Tab) TO-220AC Tube

2180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Schottky Diode
Body Material	SiC
Configuration	Single
Peak Reverse Repetitive Voltage (V)	650
Maximum Continuous Forward Current (A)	10
Peak Non-Repetitive Surge Current (A)	48
Peak Forward Voltage (V)	1.45
Peak Reverse Current (uA)	130
Operating Temperature-Min	-40
Operating Temperature-Max	175
Packing Method	Tube
Original Package	TO-220AC
Pin Count	2
Terminal Form	Through Hole
Package Height	9.15(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	2
