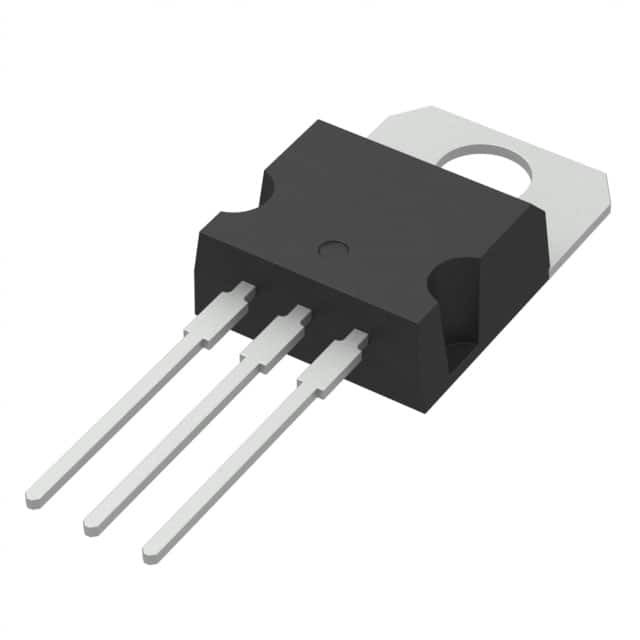

    STP6NK90Z

    SKU: 156453
    Manufacturer: STMicroelectronics
    Trans MOSFET N-CH 900V 5.8A 3-Pin(3+Tab) TO-220AB Tube
    5120 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Process Technology SuperMESH
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 900
    Maximum Gate Source Voltage (V) ±30
    Maximum Gate Threshold Voltage (V) 4.5
    Operating Junction Temperature (°C) -55 to 150
    Maximum Continuous Drain Current (A) 5.8
    Maximum Gate Source Leakage Current (nA) 10000
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 2000@10V
    Typical Gate Charge @ Vgs (nC) 46.5@10V
    Typical Gate Charge @ 10V (nC) 46.5
    Typical Gate to Drain Charge (nC) 25
    Typical Gate to Source Charge (nC) 8.5
    Typical Reverse Recovery Charge (nC) 5880000
    Typical Input Capacitance @ Vds (pF) 1350@25V
    Typical Reverse Transfer Capacitance @ Vds (pF) 26@25V
    Minimum Gate Threshold Voltage (V) 3
    Typical Output Capacitance (pF) 130
    Maximum Power Dissipation (mW) 140000
    Typical Fall Time (ns) 20
    Typical Rise Time (ns) 45
    Typical Turn-Off Delay Time (ns) 20
    Typical Turn-On Delay Time (ns) 17
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tube
    Maximum Pulsed Drain Current @ TC=25°C (A) 23.2
    Typical Gate Plateau Voltage (V) 5.9
    Typical Reverse Recovery Time (ns) 840
    Maximum Diode Forward Voltage (V) 1.6
    Typical Gate Threshold Voltage (V) 3.75
    Maximum Positive Gate Source Voltage (V) 30
    Original Package TO-220AB
    Pin Count 3
    Standard Package Method TO-220
    Terminal Form Through Hole
    Package Height 9.15(Max)
    Package Length 10.4(Max)
    Package Width 4.6(Max)
    PCB changed 3
    Tab Tab
