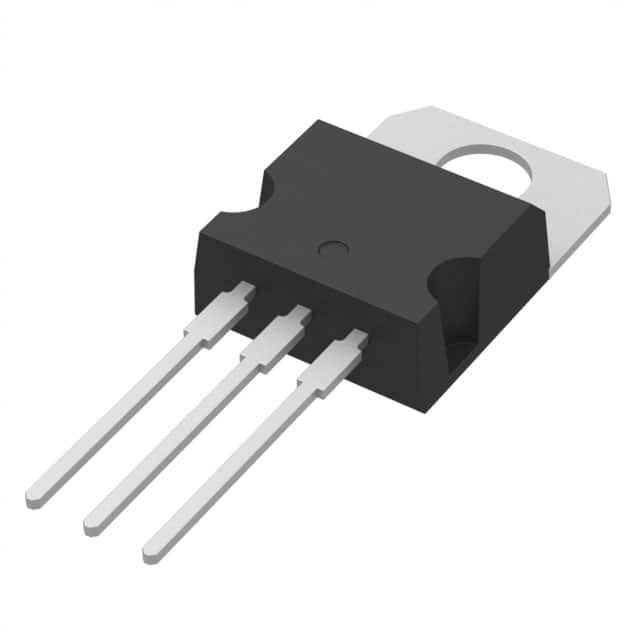

STP10NK60Z

SKU: 50345

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 600V 10A 3-Pin(3+Tab) TO-220AB Tube

2190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	SuperMESH
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±30
Maximum Gate Threshold Voltage (V)	4.5
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	10
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	750@10V
Typical Gate Charge @ Vgs (nC)	50@10V
Typical Gate Charge @ 10V (nC)	50
Typical Input Capacitance @ Vds (pF)	1370@25V
Maximum Power Dissipation (mW)	115000
Typical Fall Time (ns)	30
Typical Rise Time (ns)	20
Typical Turn-Off Delay Time (ns)	55
Typical Turn-On Delay Time (ns)	20
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-220
Original Package	TO-220AB
Terminal Form	Through Hole
Package Height	9.15(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	3
Tab	Tab
