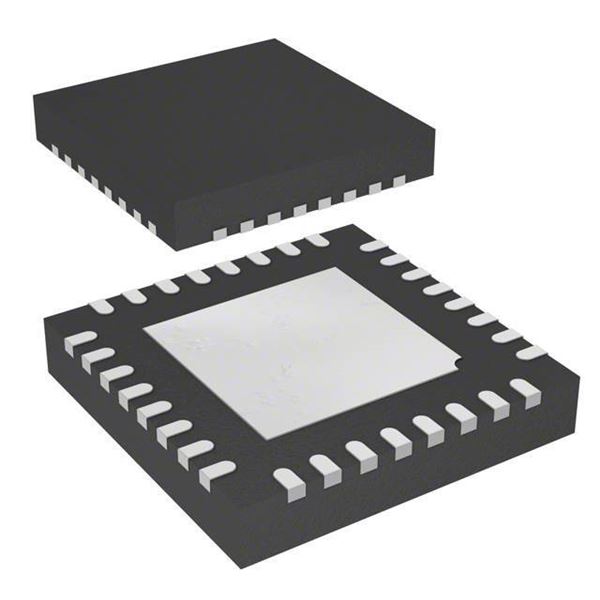

STM8S903K3U3

SKU: 137222

Manufacturer: STMicroelectronics

MCU 8-bit STM8 CISC 8KB Flash 3.3V/5V 32-Pin UFQFPN EP Tray

2110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Family Name	STM8S
Instruction Set Architecture	CISC
Device Core	STM8
Core Architecture	STM8
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	8KB
RAM Size	1KB
Maximum Expanded Memory Size	16MB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	28
No. of Timers	4
PWM	1
Number of ADCs	Single
ADC Channels	7
ADC Resolution (bit)	10
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	2
Operating Supply Voltage-Min (V)	2.95
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	132
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Original Package	UFQFPN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.53
Package Length	5
Package Width	5
PCB changed	32
