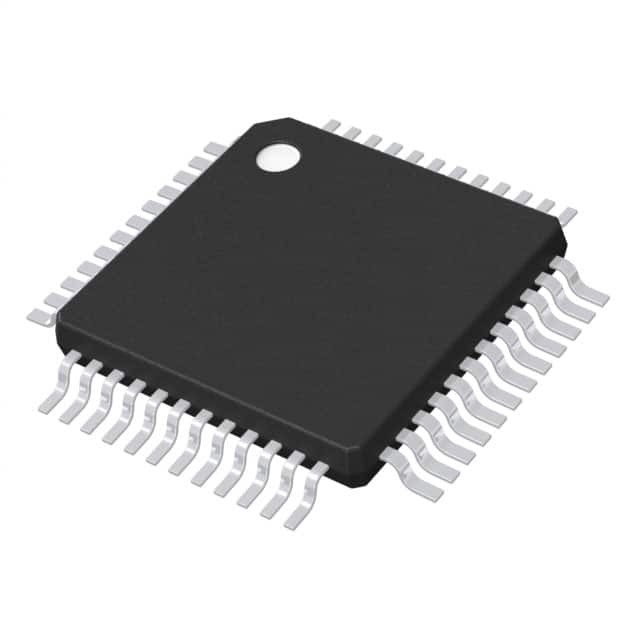

STM8L151C8T6

SKU: 135132

Manufacturer: STMicroelectronics

MCU 8-bit STM8 CISC 64KB Flash 1.8V/2.5V/3.3V 48-Pin LQFP Tray

64610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	STM8L
Instruction Set Architecture	CISC
Device Core	STM8
Core Architecture	STM8
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	4KB
Maximum Expanded Memory Size	16MB
Programmability	Yes
Interface Type	I2C/SPI/USART
Number of I/Os	41
No. of Timers	5
Number of ADCs	Single
ADC Channels	25
ADC Resolution (bit)	12
Number of DACs	Dual
DAC Channels	2/2
DAC Resolution (bit)	12/12
LCD Segments	112
USART	3
UART	0
USB	0
SPI	2
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	2
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	307
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	LQFP
Pin Count	48
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	7
Package Width	7
PCB changed	48
