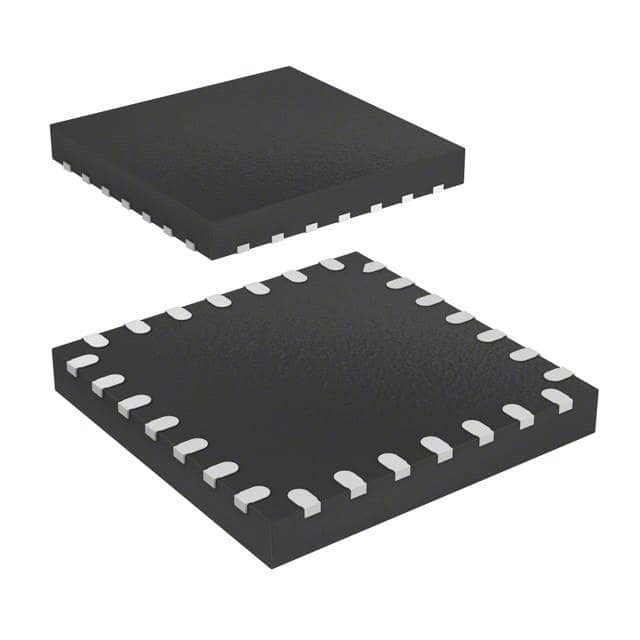

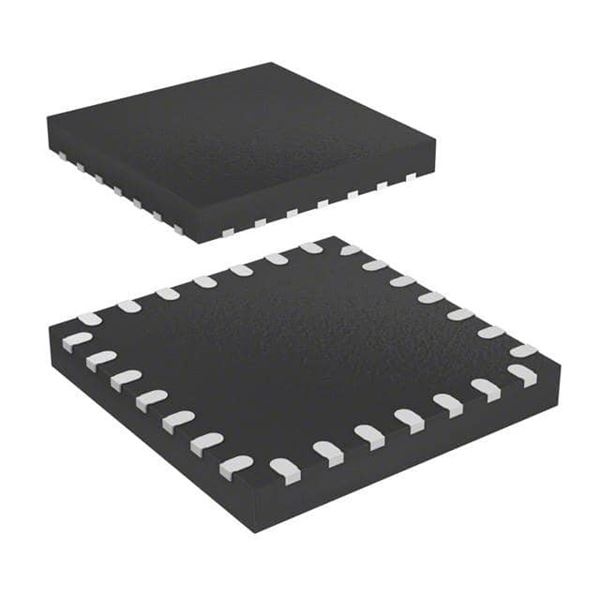

STM8L101G2U6

SKU: 149325

Manufacturer: STMicroelectronics

MCU 8-bit STM8 CISC 4KB ROM 1.8V/2.5V/3.3V 28-Pin UFQFPN Tray

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	STM8L
Instruction Set Architecture	CISC
Device Core	STM8
Core Architecture	STM8
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	8
Program Memory Type	ROM
Program Memory Size	4KB
RAM Size	1.5KB
Maximum Expanded Memory Size	16MB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	30
No. of Timers	3
PWM	2
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	250
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Pin Count	28
Standard Package Method	QFN
Original Package	UFQFPN
Terminal Form	Surface Mount
Package Height	0.53
Package Length	4
Package Width	4
PCB changed	28
