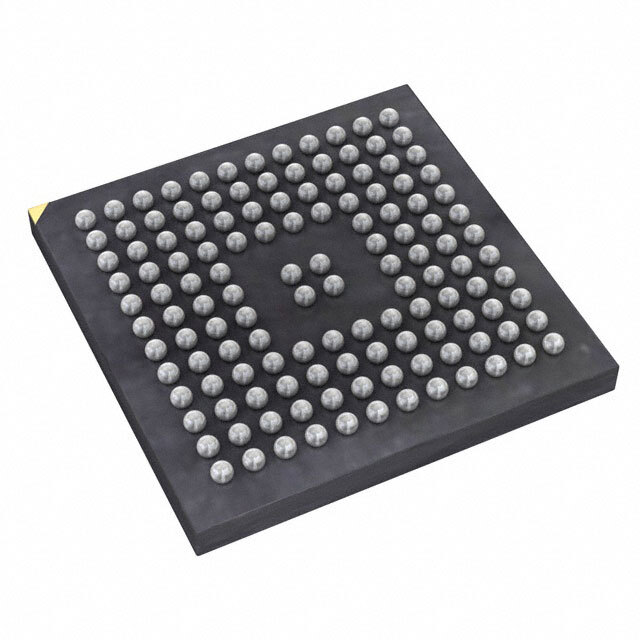

STM32L486QGI6

SKU: 21833

Manufacturer: STMicroelectronics

MCU 32-bit ARM Cortex M4 RISC 1MB Flash 1.8V/2.5V/3.3V 132-Pin UFBGA Tray

1000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992.c
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	STM32L
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4
Core Architecture	ARM
Maximum CPU Frequency (MHz)	80
Maximum Clock Rate (MHz)	80
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	1MB
RAM Size	128KB
Programmability	Yes
Interface Type	CAN/I2C/SAI/SPI/UART/USART/USB
Number of I/Os	109
No. of Timers	14
Timers Resolution (bit)	16/32
PWM	2
Number of ADCs	Triple
ADC Channels	19/19/19
ADC Resolution (bit)	12/12/12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
LCD Segments	176
USART	3
UART	2
USB	1
SPI	4
I2C	3
I2S	0
CAN	1
Ethernet	0
Watchdog	2
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller,LCD Controller
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	UFBGA
Pin Count	132
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.45
Package Length	7
Package Width	7
PCB changed	132
