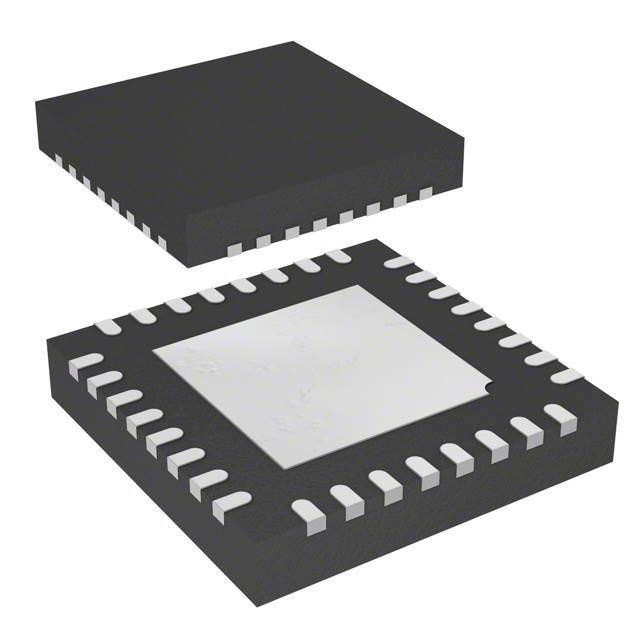

STM32L442KCU6

SKU: 21831

Manufacturer: STMicroelectronics

MCU 32-bit ARM Cortex M4 RISC 256KB Flash 2.5V/3.3V 32-Pin UFQFPN EP Tray

2020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992c.
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	STM32L
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4
Core Architecture	ARM
Maximum CPU Frequency (MHz)	80
Maximum Clock Rate (MHz)	80
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	256KB
RAM Size	64KB
Programmability	Yes
Process Technology	CMOS
Interface Type	CAN/I2C/SPI/UART/USART
Number of I/Os	26
No. of Timers	9
PWM	1
Number of ADCs	Single
ADC Channels	10
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
USART	2
UART	1
USB	0
SPI	2
I2C	2
I2S	0
CAN	1
Ethernet	0
Watchdog	2
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	523
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	UFQFPN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	5
Package Width	5
PCB changed	32
