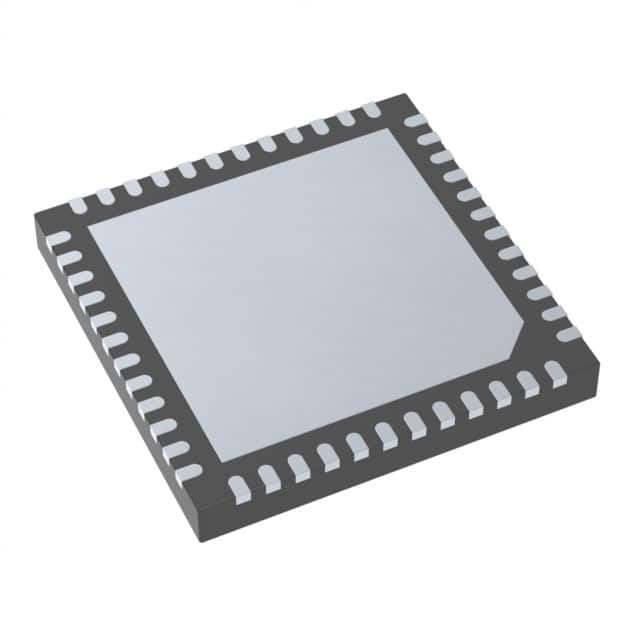

STM32L412CBU6

SKU: 156438

Manufacturer: STMicroelectronics

MCU 32-bit ARM Cortex M4 RISC 128KB Flash 3.3V 48-Pin UFQFPN EP Tray

1520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	STM32L
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4
Core Architecture	ARM
Maximum CPU Frequency (MHz)	80
Maximum Clock Rate (MHz)	80
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	40KB
Programmability	Yes
Interface Type	I2C/SPI/UART/USART/USB
Number of I/Os	38
No. of Timers	8
PWM	1
Number of ADCs	Dual
ADC Channels	10/10
ADC Resolution (bit)	12/12
USART	3
UART	1
USB	1
SPI	2
I2C	3
I2S	0
CAN	0
Ethernet	0
Watchdog	2
Analog Comparators	1
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	294
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	UFQFPN EP
Pin Count	48
Terminal Form	Surface Mount
Package Height	0.55
Package Length	7
Package Width	7
