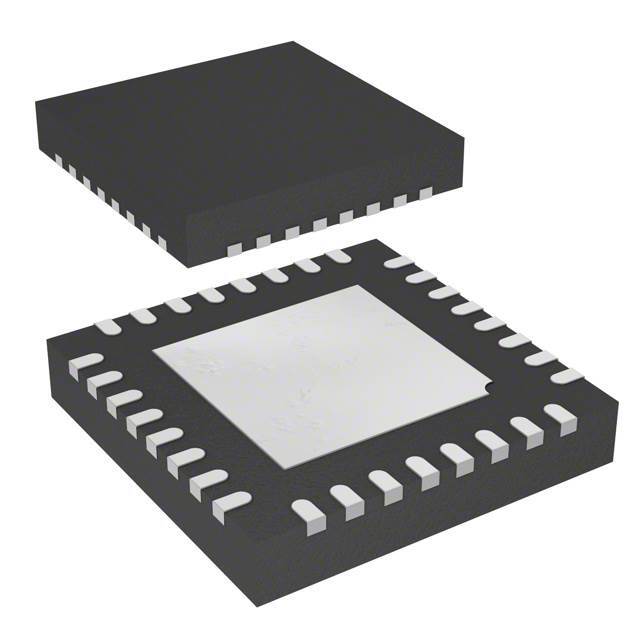

STM32L051K8U7

SKU: 120955

Manufacturer: STMicroelectronics

MCU 32-bit ARM Cortex M0+ RISC 64KB Flash 1.8V/2.5V/3.3V 32-Pin UFQFPN EP Tray

2290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	STM32L
Instruction Set Architecture	RISC
Device Core	ARM Cortex M0+
Core Architecture	ARM
Maximum CPU Frequency (MHz)	32
Maximum Clock Rate (MHz)	32
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	8KB
Programmability	Yes
Interface Type	I2C/SPI/USART
Number of I/Os	27
No. of Timers	5
PWM	1
Number of ADCs	Single
ADC Channels	10
ADC Resolution (bit)	12
USART	2
UART	0
USB	0
SPI	3
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	351
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	UFQFPN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.53
Package Length	5
Package Width	5
PCB changed	32
