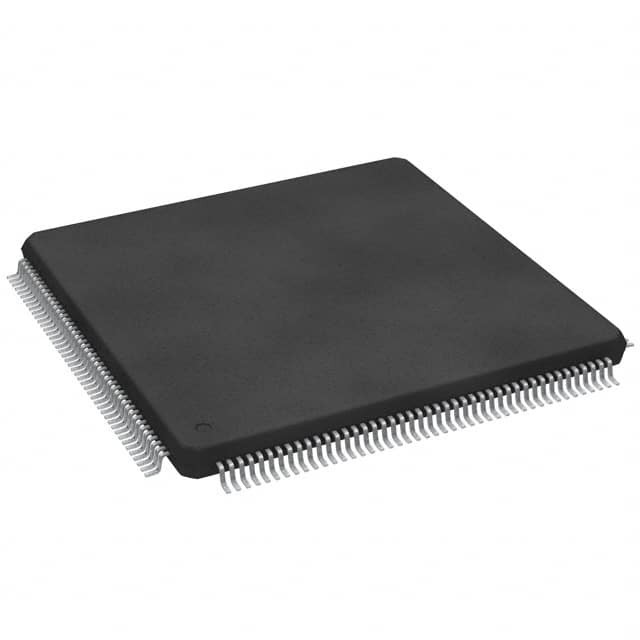

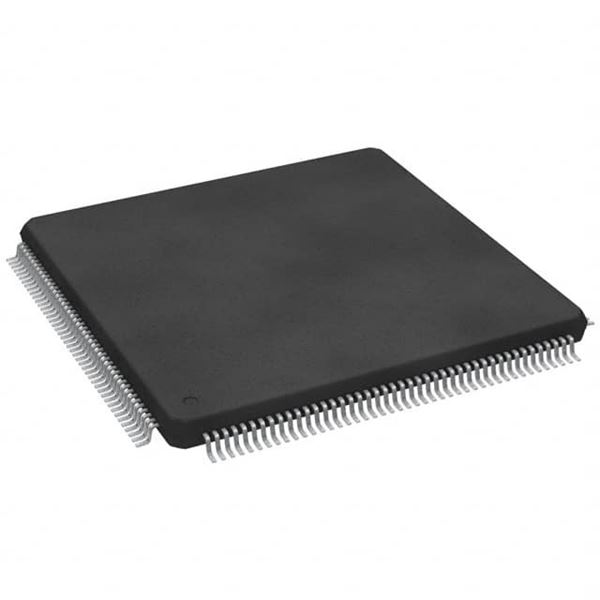

STM32H753IIT6

SKU: 137218

Manufacturer: STMicroelectronics

MCU 32-bit ARM Cortex M7 RISC 2MB Flash 3.3V 176-Pin LQFP Tray

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992.c
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	STM32H
Instruction Set Architecture	RISC
Device Core	ARM Cortex M7
Core Architecture	ARM
Maximum CPU Frequency (MHz)	480
Maximum Clock Rate (MHz)	480
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	2MB
RAM Size	1MB
Programmability	Yes
Process Technology	40nm
Interface Type	CAN/Ethernet/I2C/I2S/SPI/UART/USART/USB
Number of I/Os	140
No. of Timers	18
PWM	2
Number of ADCs	Triple
ADC Channels	20/20/20
ADC Resolution (bit)	16/16/16
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
USART	4
UART	4
USB	2
SPI	6
I2C	4
I2S	3
CAN	1
Ethernet	1
Watchdog	2
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.62
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	943
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	LQFP
Pin Count	176
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	24.1(Max)
Package Width	24.1(Max)
PCB changed	176
