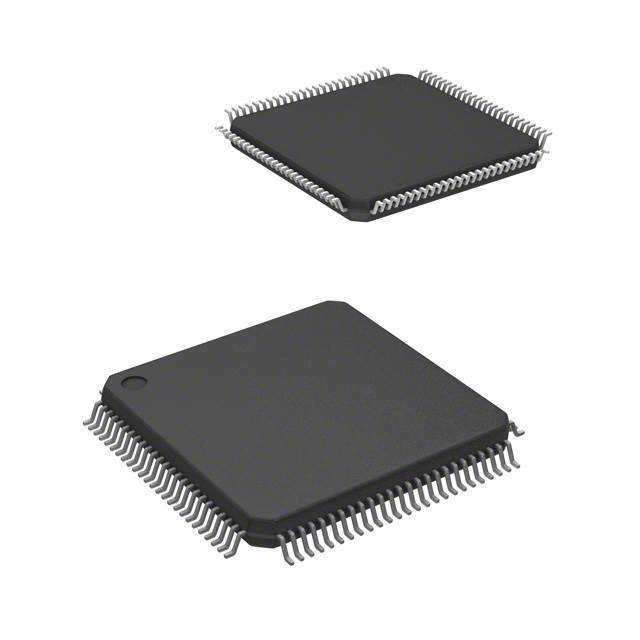

STM32G474VET6

SKU: 52429

Manufacturer: STMicroelectronics

MCU 32-bit ARM Cortex M4 RISC 512KB Flash 3.3V 100-Pin LQFP Tray

1560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	STM32
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4
Core Architecture	ARM
Maximum CPU Frequency (MHz)	170
Maximum Clock Rate (MHz)	170
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	512KB
RAM Size	128KB
Programmability	Yes
Process Technology	CMOS
Interface Type	CAN/I2C/I2S/SPI/UART/USART/USB
Number of I/Os	86
No. of Timers	15
PWM	4
Number of ADCs	Quint
ADC Channels	42/42/42/42/42
ADC Resolution (bit)	12/12/12/12/12
Number of DACs	Quad
DAC Channels	7/7/7/7
DAC Resolution (bit)	12/12/12/12
USART	3
UART	3
USB	1
SPI	4
I2C	4
I2S	2
CAN	3
Ethernet	0
Watchdog	2
Analog Comparators	7
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	399
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	LQFP
Pin Count	100
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	14
Package Width	14
PCB changed	100
