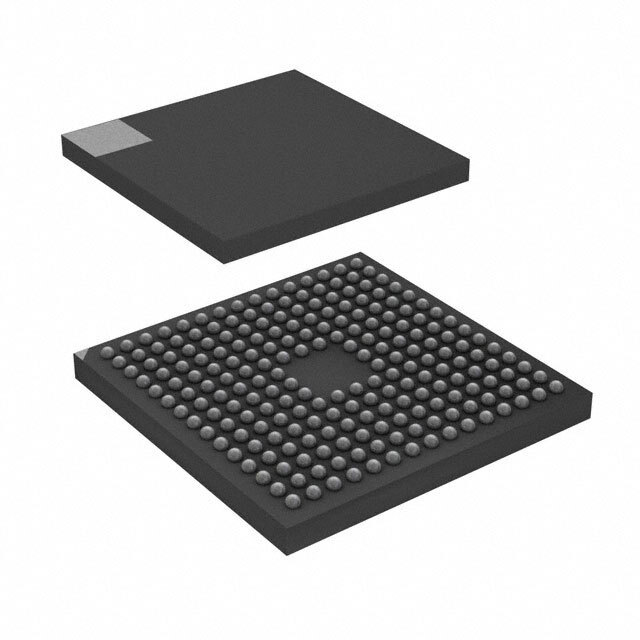

STM32F769NIH6

SKU: 156433

Manufacturer: STMicroelectronics

STM32F769NIH6 STMicroelectronics Microcontroller 32-bit ARM Cortex M7 RISC 2MB Flash 3.3V 216-Pin TFBGA - Arrow.com

250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	STM32F
Instruction Set Architecture	RISC
Device Core	ARM Cortex M7
Core Architecture	ARM
Maximum CPU Frequency (MHz)	216
Maximum Clock Rate (MHz)	216
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	2MB
RAM Size	532KB
Programmability	Yes
Process Technology	CMOS
Interface Type	CAN/Ethernet/I2C/I2S/SPI/UART/USART/USB
Number of I/Os	168
No. of Timers	15
PWM	2
Number of ADCs	Triple
ADC Channels	24/24/24
ADC Resolution (bit)	12/12/12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
USART	4
UART	4
USB	2
SPI	6
I2C	4
I2S	3
CAN	3
Ethernet	1
Watchdog	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	690
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	TFBGA
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.76
Package Length	13
Package Width	13
PCB changed	216
