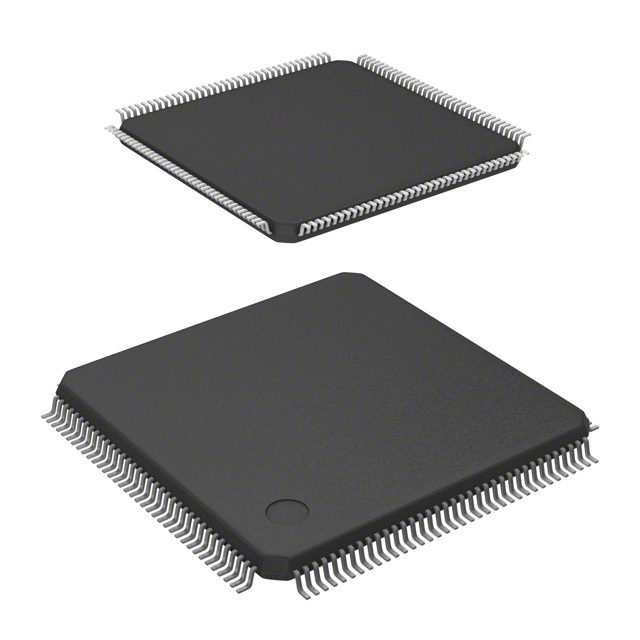

STM32F437ZIT7

SKU: 85515

Manufacturer: STMicroelectronics

MCU 32-bit ARM Cortex M4 RISC 2MB Flash 2.5V/3.3V 144-Pin LQFP Tray

860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992.c
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	STM32F
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4
Core Architecture	ARM
Maximum CPU Frequency (MHz)	180
Maximum Clock Rate (MHz)	180
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	2MB
RAM Size	260KB
Programmability	Yes
Interface Type	CAN/Ethernet/I2C/I2S/SPI/UART/USART/USB
Number of I/Os	114
No. of Timers	14
PWM	4
Number of ADCs	Triple
ADC Channels	24/24/24
ADC Resolution (bit)	12/12/12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
USART	4
UART	4
USB	2
SPI	6
I2C	3
I2S	2
CAN	2
Ethernet	1
Watchdog	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	LQFP
Pin Count	144
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	20
Package Width	20
PCB changed	144
