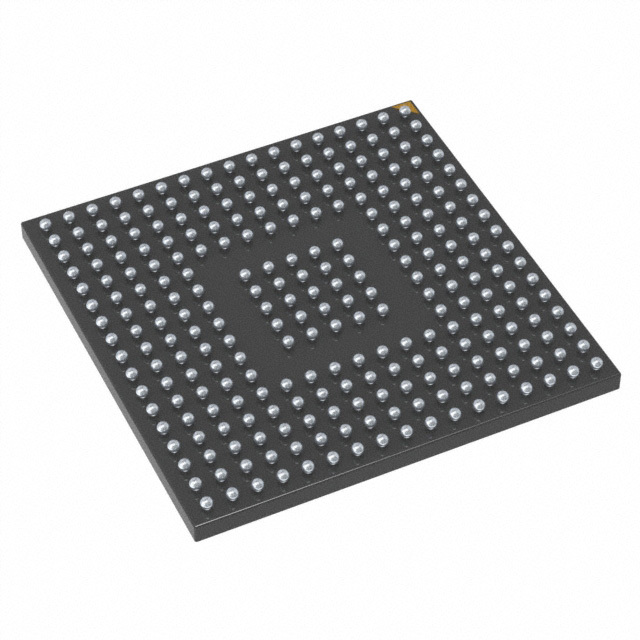

STM32F407IEH6

SKU: 99699

Manufacturer: STMicroelectronics

MCU 32-bit ARM Cortex M4 RISC 512KB Flash 2.5V/3.3V 201-Pin UFBGA Tray

2240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	STM32F
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4
Core Architecture	ARM
Maximum CPU Frequency (MHz)	168
Maximum Clock Rate (MHz)	168
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	512KB
RAM Size	196KB
Programmability	Yes
Interface Type	CAN/Ethernet/I2C/I2S/SPI/UART/USART/USB
Number of I/Os	140
No. of Timers	14
PWM	2
Number of ADCs	Triple
ADC Channels	24/24/24
ADC Resolution (bit)	12/12/12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
USART	4
UART	2
USB	2
SPI	3
I2C	3
I2S	2
CAN	2
Ethernet	1
Watchdog	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	513
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	UFBGA
Pin Count	201
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.45
Package Length	10
Package Width	10
PCB changed	201
