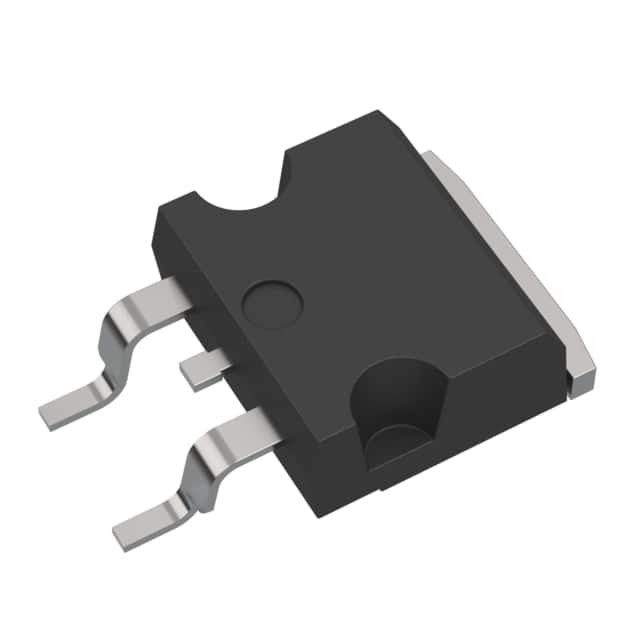

    STH275N8F7-2AG

    SKU: 130089
    Manufacturer: STMicroelectronics
    Trans MOSFET N-CH 80V 180A Automotive 3-Pin(2+Tab) H2PAK T/R
    2320 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    Automotive Yes
    PPAP Unknown
    Product Category Power MOSFET
    Configuration Single
    Process Technology STripFET F7
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 80
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 4.5
    Maximum Continuous Drain Current (A) 180
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 2.1@10V
    Typical Gate Charge @ Vgs (nC) 193@10V
    Typical Gate Charge @ 10V (nC) 193
    Typical Input Capacitance @ Vds (pF) 13600@50V
    Maximum Power Dissipation (mW) 315000
    Typical Fall Time (ns) 42
    Typical Rise Time (ns) 180
    Typical Turn-Off Delay Time (ns) 98
    Typical Turn-On Delay Time (ns) 56
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Supplier Temperature Grade Automotive
    Packing Method Tape and Reel
    Original Package H2PAK
    Pin Count 3
    Terminal Form Surface Mount
    Package Height 4.8(Max)
    Package Length 10.4(Max)
    Package Width 9.17(Max)
    PCB changed 2
    Tab Tab
