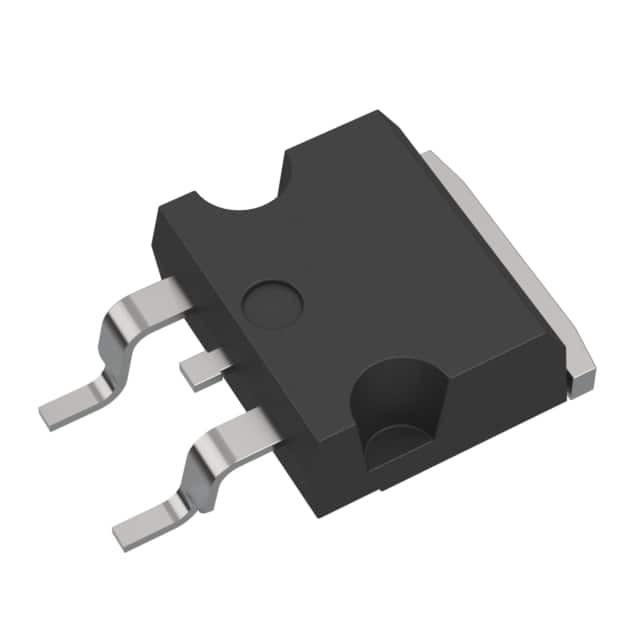

STH260N6F6-2

SKU: 14825

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 60V 180A 3-Pin(2+Tab) H2PAK T/R

1080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	STripFET VI
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	180
Maximum Drain Source Resistance (mOhm)	2.4@10V
Typical Gate Charge @ Vgs (nC)	183@10V
Typical Gate Charge @ 10V (nC)	183
Typical Input Capacitance @ Vds (pF)	11800@25V
Maximum Power Dissipation (mW)	300000
Typical Fall Time (ns)	62.6
Typical Rise Time (ns)	165
Typical Turn-Off Delay Time (ns)	144.4
Typical Turn-On Delay Time (ns)	31.4
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
Pin Count	3
Original Package	H2PAK
Terminal Form	Surface Mount
Package Height	4.8(Max)
Package Length	10.4(Max)
Package Width	9.17(Max)
PCB changed	2
Tab	Tab
