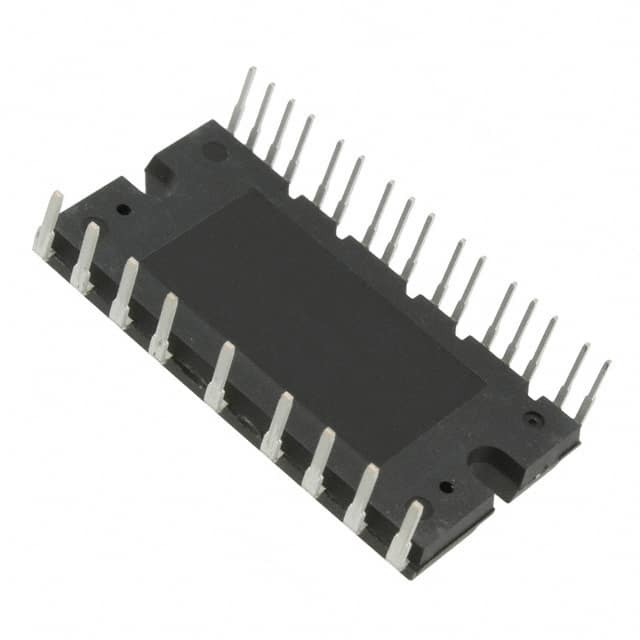

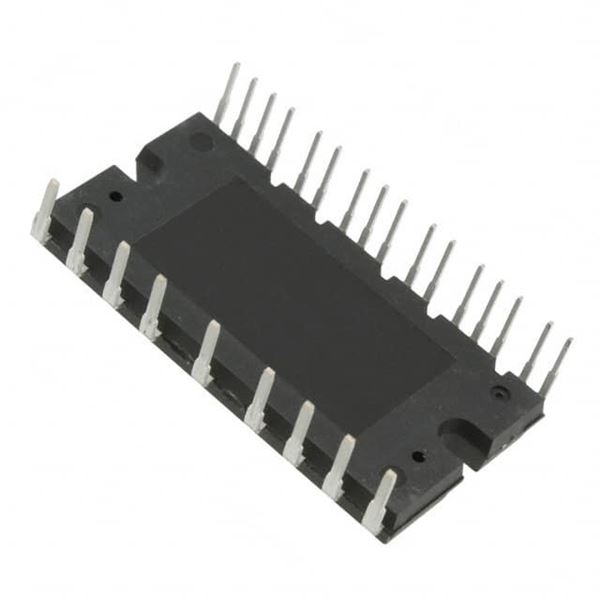

    STGIPS20K60

    SKU: 135097
    Manufacturer: STMicroelectronics
    IPM IGBT 600V 18A 25-Pin SDIP Tube
    Download sample
    Request Free Samples
    1880 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    Automotive No
    PPAP No
    Type IGBT
    Configuration Hex
    Number of Phases Three
    Protection Type Over Current/Over Temperature/Under Voltage
    Collector-Emitter Voltage-Max (V) 600
    Typical Collector Emitter Saturation Voltage (V) 2.2
    Maximum Continuous Collector Current (A) 18
    Maximum Isolation Voltage (Vrms) 2500
    Maximum Collector-Emitter Cut-Off Current (mA) 0.15
    Maximum Power Dissipation (W) 52
    Operating Temperature-Min -40
    Operating Temperature-Max 125
    Packing Method Tube
    Original Package SDIP
    Pin Count 25
    Standard Package Method DIP
    Terminal Form Through Hole
    Package Height 5.8(Max)
    Package Length 44.8(Max)
    Package Width 22.4(Max)
