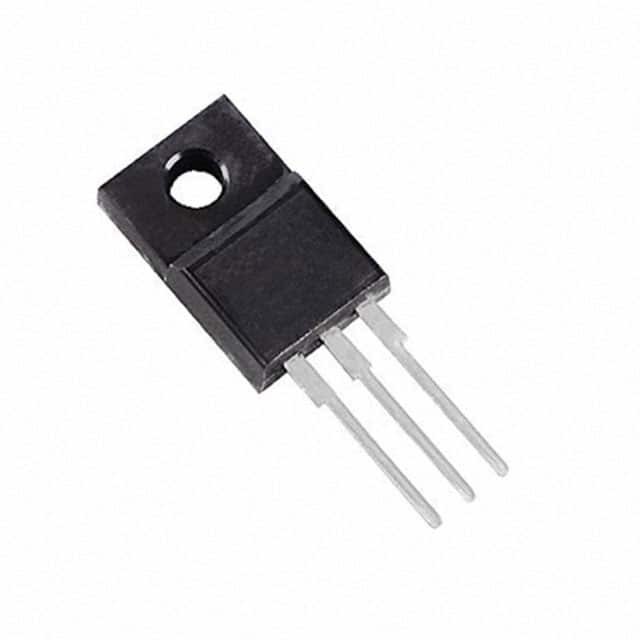

STF11N65M2

SKU: 43173

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 650V 7A 3-Pin(3+Tab) TO-220FP Tube

50 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	MDmesh II Plus
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	650
Maximum Gate Source Voltage (V)	±25
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	7
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	680@10V
Typical Gate Charge @ Vgs (nC)	12.5@10V
Typical Gate Charge @ 10V (nC)	12.5
Typical Input Capacitance @ Vds (pF)	410@100V
Maximum Power Dissipation (mW)	25000
Typical Fall Time (ns)	15
Typical Rise Time (ns)	7.5
Typical Turn-Off Delay Time (ns)	26
Typical Turn-On Delay Time (ns)	9.5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-220FP
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	16.4(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	3
Tab	Tab
