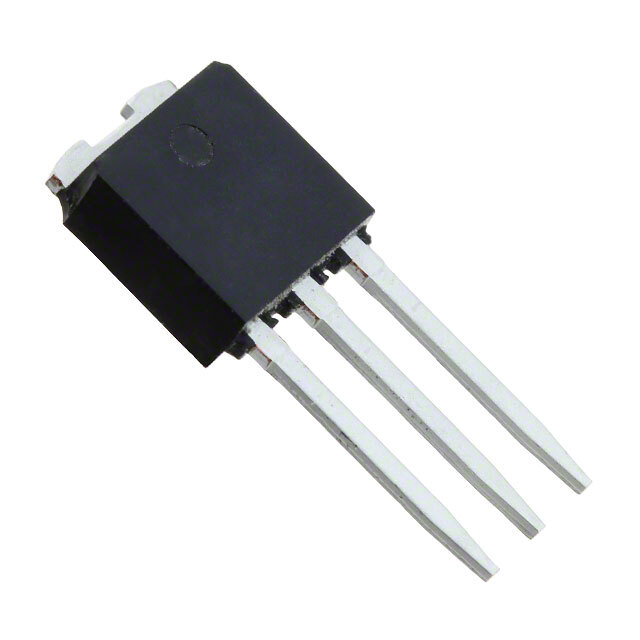

STD1NK80Z-1

SKU: 57382

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 800V 1A 3-Pin(3+Tab) IPAK Tube

3960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	800
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	1
Maximum Drain Source Resistance (mOhm)	16000@10V
Typical Gate Charge @ Vgs (nC)	7.7@10V
Typical Gate Charge @ 10V (nC)	7.7
Typical Input Capacitance @ Vds (pF)	160@25V
Maximum Power Dissipation (mW)	45000
Typical Fall Time (ns)	55
Typical Rise Time (ns)	30
Typical Turn-Off Delay Time (ns)	22
Typical Turn-On Delay Time (ns)	8
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	IPAK
Pin Count	3
Standard Package Method	TO-251
Terminal Form	Through Hole
Package Height	6.2(Max)
Package Length	6.6(Max)
Package Width	2.4(Max)
PCB changed	3
Tab	Tab
