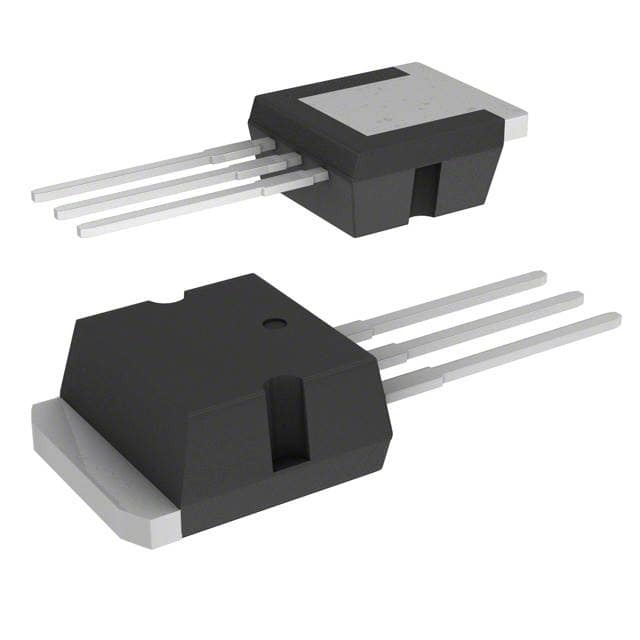

STB80NF55L-08-1

SKU: 78378

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 55V 80A 3-Pin(3+Tab) I2PAK Tube

11310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	55
Maximum Gate Source Voltage (V)	±16
Maximum Continuous Drain Current (A)	80
Maximum Drain Source Resistance (mOhm)	8@10V
Typical Gate Charge @ Vgs (nC)	75@4.5V
Typical Input Capacitance @ Vds (pF)	4350@25V
Maximum Power Dissipation (mW)	300000
Typical Fall Time (ns)	65
Typical Rise Time (ns)	145
Typical Turn-Off Delay Time (ns)	85
Typical Turn-On Delay Time (ns)	35
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Original Package	I2PAK
Pin Count	3
Standard Package Method	I2PAK
Terminal Form	Through Hole
Package Height	8.95
Package Length	10
Package Width	4.4
PCB changed	3
Tab	Tab
