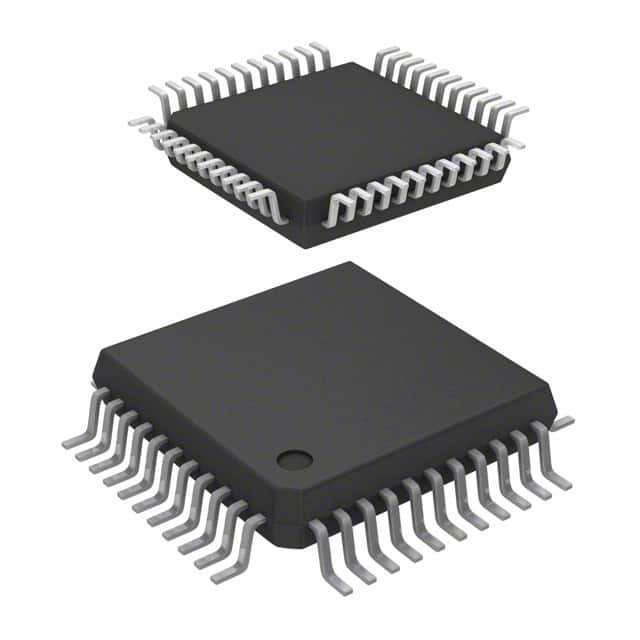

ST72F324BJ6T6

SKU: 36036

Manufacturer: STMicroelectronics

MCU 8-bit ST7 CISC 32KB Flash 5V 44-Pin LQFP Tray

10830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ST7
Instruction Set Architecture	CISC
Device Core	ST7
Maximum CPU Frequency (MHz)	8
Maximum Clock Rate (MHz)	8
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	1KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	SCI/SPI
Number of I/Os	32
No. of Timers	2
PWM	1
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	10
USART	0
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Operating Supply Voltage-Min (V)	3.8
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	LQFP
Pin Count	44
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	10
Package Width	10
PCB changed	44
