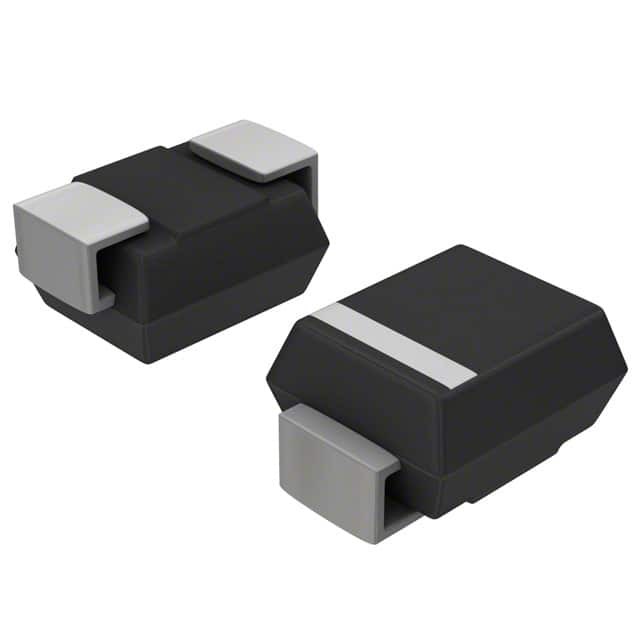

SMA6J188CA-TR

SKU: 92119

Manufacturer: STMicroelectronics

TVS Diode Single Bi-Dir 188V 600W Automotive 2-Pin SMA T/R

1390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	209
Maximum Clamping Voltage (V)	388
Maximum Reverse Stand-Off Voltage (V)	188
Maximum Peak Pulse Current (A)	10.3
Maximum Reverse Leakage Current (uA)	0.2
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	600
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	DO-214-AC
Original Package	SMA
Terminal Form	Surface Mount
Package Height	2.7(Max)
Package Length	4.6(Max)
Package Width	2.95(Max)
PCB changed	2
