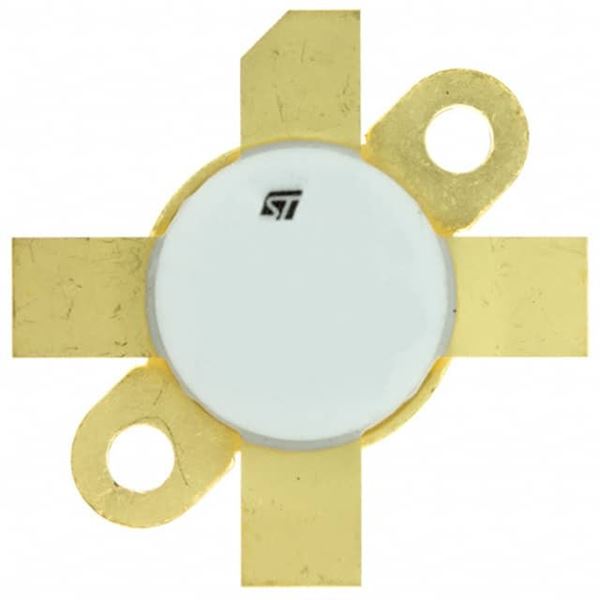

SD2933

SKU: 144142

Manufacturer: STMicroelectronics

Trans RF MOSFET N-CH 125V 40A 5-Pin Case M-177 Loose

1310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8541.29.00.95
Automotive	No
PPAP	No
Configuration	Single Triple Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	125
Maximum Gate Source Voltage (V)	±20
Maximum VSWR	3(Min)
Maximum Continuous Drain Current (A)	40
Typical Input Capacitance @ Vds (pF)	1000@50V
Typical Reverse Transfer Capacitance @ Vds (pF)	29@50V
Typical Output Capacitance @ Vds (pF)	372@50V
Typical Forward Transconductance (S)	10(Min)
Maximum Power Dissipation (mW)	648000
Output Power (W)	400(Typ)
Typical Power Gain (dB)	23.5
Maximum Frequency (MHz)	150
Typical Drain Efficiency (%)	65
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Loose
Original Package	Case M-177
Pin Count	5
Terminal Form	Screw
Package Height	7.11(Max)
Package Length	28.96(Max)
Package Width	16.13(Max)
