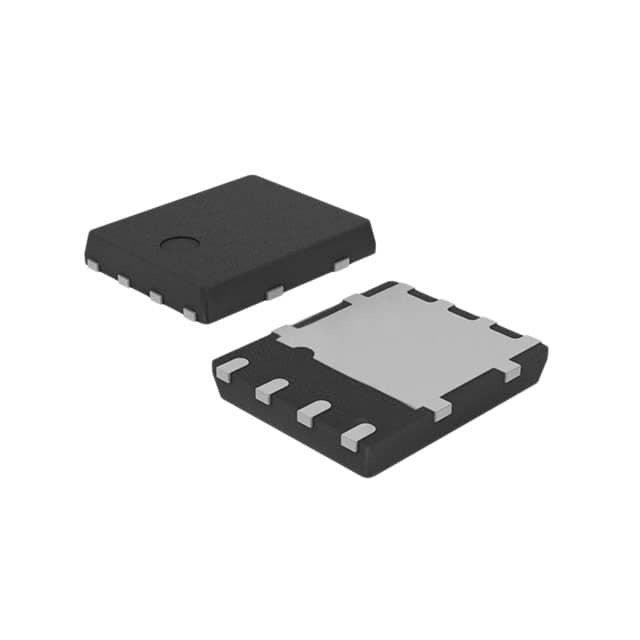

PD54008L-E

SKU: 70497

Manufacturer: STMicroelectronics

Trans RF FET N-CH 25V 5A 14-Pin Power Flat T/R

1350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
Automotive	No
PPAP	No
Configuration	Single Quad Drain Quad Gate Quad Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Process Technology	LDMOS
Maximum Drain Source Voltage (V)	25
Maximum Gate Source Voltage (V)	15
Maximum Continuous Drain Current (A)	5
Typical Input Capacitance @ Vds (pF)	80@7.5V
Typical Reverse Transfer Capacitance @ Vds (pF)	6.6@7.5V
Typical Output Capacitance @ Vds (pF)	60@7.5V
Maximum Power Dissipation (mW)	26700
Output Power (W)	8(Min)
Typical Power Gain (dB)	15(Min)
Maximum Frequency (MHz)	1000
Typical Drain Efficiency (%)	50(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Power Flat
Pin Count	14
Terminal Form	Surface Mount
Package Height	0.88
Package Length	5
Package Width	5
