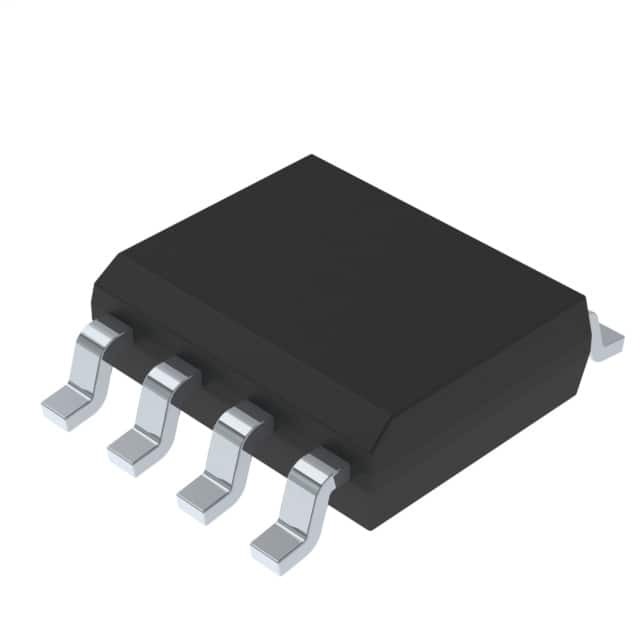

MC33172D

SKU: 98192

Manufacturer: STMicroelectronics

Op Amp Dual Low Power Amplifier ±22V/44V 8-Pin SO N Tube

2210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Power Amplifier
Manufacturer Type	Low Power Amplifier
Number of Channels per Chip	2
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	5@5V
Minimum Single Supply Voltage (V)	4
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	44
Minimum Dual Supply Voltage (V)	±2
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±22
Typical Low Level Output Voltage (V)	0.1
Typical High Level Output Voltage (V)	4.2
Maximum Input Offset Current (uA)	0.02@±15V
Typical Input Bias Current (uA)	0.02@±15V
Maximum Input Bias Current (uA)	0.1@±15V
Maximum Quiescent Current (mA)	0.25@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	2@±15V
Typical Input Noise Voltage Density (nV/rtHz)	29@±15V
Input Offset Voltage Drift (uV/°C)	10(Typ)
Typical Voltage Gain (dB)	100
Minimum CMRR (dB)	80
Minimum CMRR Range (dB)	80 to 85
Typical Gain Bandwidth Product (MHz)	2.1
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	SO N
Terminal Form	Surface Mount
Package Height	1.65(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
