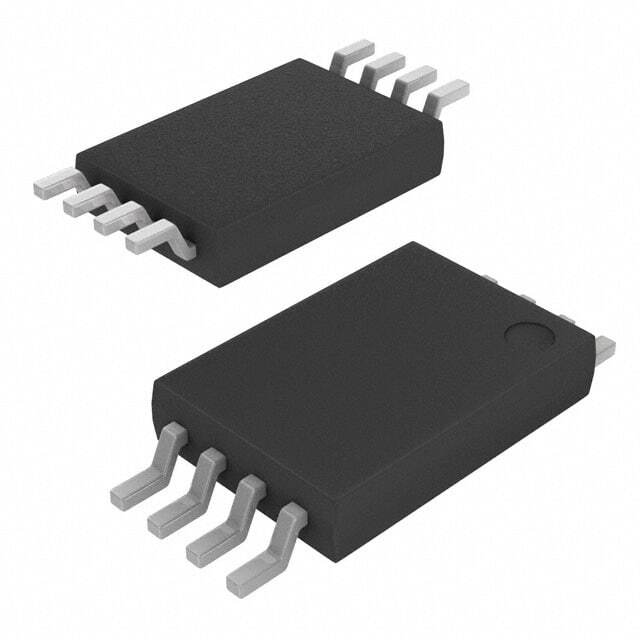

M95010-RDW6TP

SKU: 76705

Manufacturer: STMicroelectronics

EEPROM Serial-SPI 1K-bit 128 x 8 2.5V/3.3V/5V 8-Pin TSSOP T/R

6730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.51
Automotive	No
PPAP	No
Chip Density (bit)	1K
Organization	128x8
Address Bus Width (bit)	7
Programmability	Yes
Data Retention (Year)	200(Min)
Max. Access Time (ns)	80
Maximum Operating Frequency (MHz)	5
Interface Type	Serial-SPI
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Programming Voltage (V)	1.8 to 5.5
Operating Current (mA)	5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Hardware Data Protection	Yes
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1
Package Length	3
Package Width	4.4
PCB changed	8
