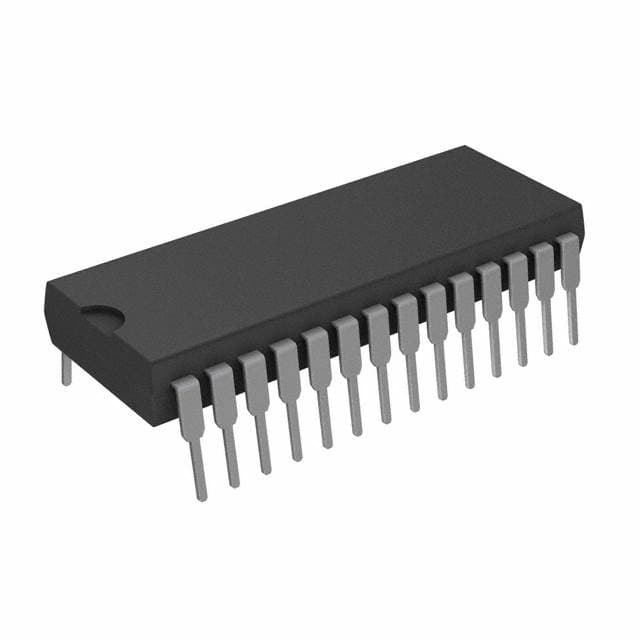

M27C512-90B6

SKU: 48587

Manufacturer: STMicroelectronics

EPROM OTP 512K-bit 64K x 8 90ns 28-Pin PDIP

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.32.00.51
Automotive	No
PPAP	No
Chip Density (bit)	512K
Organization	64Kx8
Programmability	Yes
Reprogramming Technique	OTP
Max. Access Time (ns)	90
Output Enable Access Time (ns)	40
Process Technology	CMOS
In-System Programmability	External
Interface Type	Parallel
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Programming Voltage (V)	12.5 to 13
Maximum Operating Current (mA)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Original Package	PDIP
Pin Count	28
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.81
Package Length	36.83
Package Width	13.72
PCB changed	28
