M24C64S-FCU6T/T

SKU: 83810

Manufacturer: STMicroelectronics

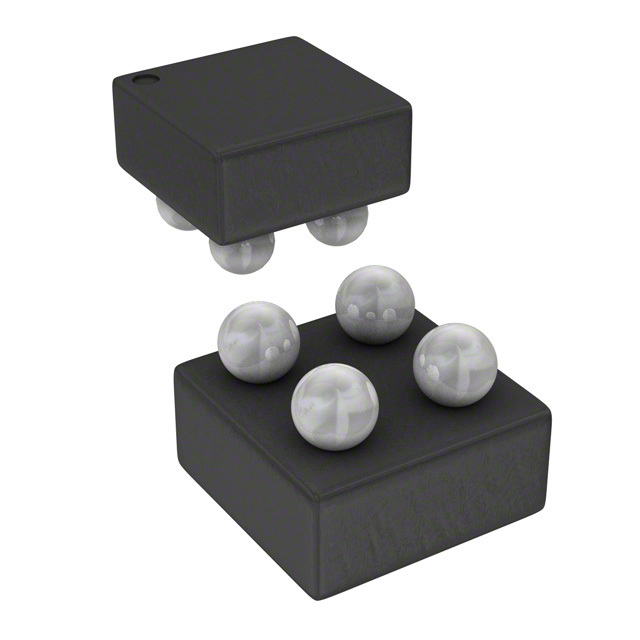

EEPROM Serial-I2C 64K-bit 8K x 8 1.8V/2.5V/3.3V/5V 4-Pin WLCSP T/R

2600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.32.00.51
Automotive	No
PPAP	No
Chip Density (bit)	64K
Organization	8Kx8
Address Bus Width (bit)	1
Programmability	Yes
Data Retention (Year)	40(Min)
Max. Access Time (ns)	900
Maximum Operating Frequency (MHz)	0.4
Interface Type	Serial-I2C
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Operating Current (mA)	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Hardware Data Protection	No
Packing Method	Tape and Reel
Original Package	WLCSP
Pin Count	4
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.18
Package Length	0.83
Package Width	0.83
PCB changed	4
