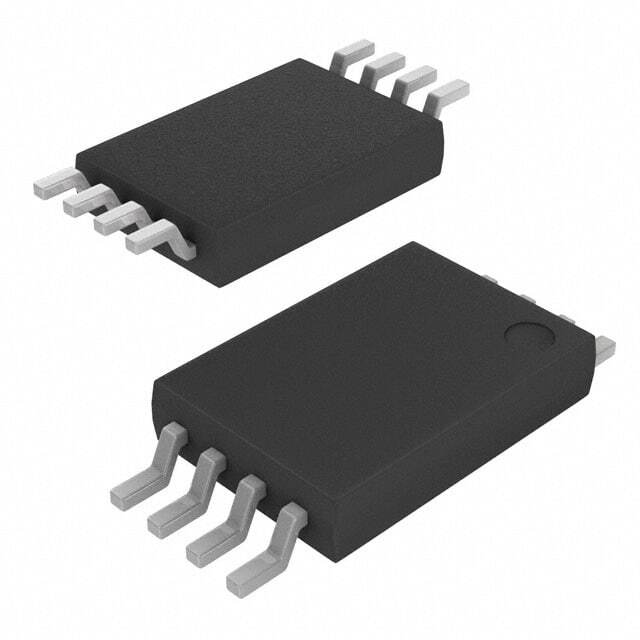

M24C16-WDW6TP

SKU: 20146

Manufacturer: STMicroelectronics

EEPROM Serial-I2C 16K-bit 2K x 8 3.3V/5V 8-Pin TSSOP T/R

101070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.32.00.51
Automotive	No
PPAP	No
Chip Density (bit)	16K
Organization	2Kx8
Address Bus Width (bit)	8
Programmability	Yes
Data Retention (Year)	200(Min)
Max. Access Time (ns)	900
Maximum Operating Frequency (MHz)	0.4
Interface Type	Serial-I2C
Operating Supply Voltage-Min (V)	2.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Programming Voltage (V)	2.5 to 5.5
Operating Current (mA)	1
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Hardware Data Protection	Yes
Packing Method	Tape and Reel
Number of Bits per Word (bit)	8
Original Package	TSSOP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Length	3
Package Width	4.4
PCB changed	8
