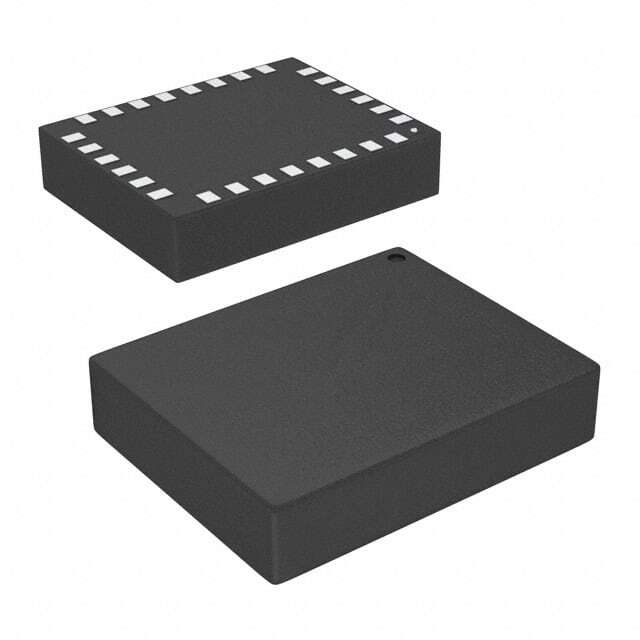

LYPR540AH

SKU: 147565

Manufacturer: STMicroelectronics

MEMS Triple Axis ±1600°/s 28-Pin PLGA Tray

2960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
Part Status	Obsolete
Automotive	No
PPAP	No
Axis Type	Triple
Typical Sensitivity (mV/°/s)	3.2
Typical Angular Rate Noise Density (°/s/rtHz)	0.02
Typical Angular Velocity (°/s)	±1600
Typical Bandwidth (Hz)	140
Technology	MEMS
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3
Operating Supply Voltage-Max (V)	3.6
Maximum Operating Supply Current (mA)	10.8(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Linearity	No
Packing Method	Tray
Original Package	PLGA
Pin Count	28
Standard Package Method	LGA
Terminal Form	Surface Mount
Package Height	1.1(Max)
Package Length	7.5
Package Width	4.4
